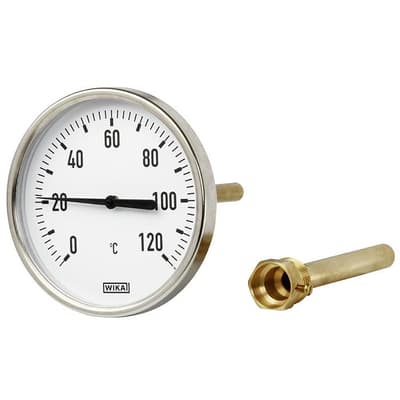

Bi-Metal Thermometer - 50

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
The model A50 bimetal thermometer is used mainly in heating, air-conditioning, ventilation and refrigeration technology and is suitable for a scale range up to 200 °C.

The bimetal thermometers are mounted into the respective application with screw-in thermowells.

On the one hand, this protects the instrument, on the other hand, the measuring instrument can be exchanged without having to disrupt the process.
Features
  • Accuracy class 2 per EN 13190
  • Nominal size 63, 80, 100 and 160
  • Scale ranges from -30 ... +200 °C
The model A50 bimetal thermometer is used mainly in heating, air-conditioning, ventilation and refrigeration technology and is suitable for a scale range up to 200 °C.

The bimetal thermometers are mounted into the respective application with screw-in thermowells.

On the one hand, this protects the instrument, on the other hand, the measuring instrument can be exchanged without having to disrupt the process.
Features
  • Accuracy class 2 per EN 13190
  • Nominal size 63, 80, 100 and 160
  • Scale ranges from -30 ... +200 °C
Close

Specifications

Brand

Measuring Element

  • Bimetal coil

Nominal Size in mm

  • 63
  • 80
  • 100
  • 160

Connection Design

  • Removable thermowell with Retainer Screw

Dial

  • Model A50.10: Aluminium, White, Black Lettering
  • Model A50.20: Plastic, White, Black Lettering

Pointer

  • ≤ 120° C: Plastic, Black
  • > 120° C: Aluminium, Black

Window

  • SAN

Zero Adjustment

  • At Bottom of Stem

Permissible Operating Pressure at Thermowell

  • Maximum 6 bar

Case Material

  • Aluminium
  • Steel, Galvanised
Close

Applications

  • Heating systems
  • Hot water tanks
  • Solar collectors
