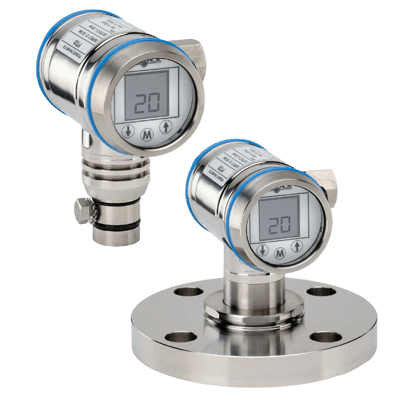

Images are representations only.
Description
Features
- Adjustable pressure ranges vacuum to 1,160 psig
- All ranges are user adjustable from vacuum to full scale with standard on board display
- 4 mA to 20 mA HART® optional pressure transmitter
- Accuracy ±0.2% of adjusted span
- 4:1 turn down
- All-Stainless Steel construction with 316 Stainless Steel wetted parts
- Built to suppress RFI, EMI and ESD
Configure
Specifications
Specifications
Brand
Accuracy
- 0.2% of Adjusted Span (Turn Down 4:1)
Temperature Range
- Media: -4° to 176° F (-20° to 80° C)
- Ambient: -4° to 158° F (-20° to 70° C)
- Flange: -4° to 212° F (-20° to 100° C)
Stability
- < 0.1%/Year
Adjustable Pressure Range
- 5 to 1,160 psig
Output Signal
- 4-20 mA, 2-wire
- 4-20 mA, 2-wire with HART
Adjustment
- By 3 Push Buttons on Display or Optional HART® Protocol
Response Time
- <100 ms
Power Requirement
- 12-36 Vdc
Materials of Construction
- Connection: 316 Stainless Steel
- Measuring Element: 316 Stainless Steel (Hastelloy C or Tantalum Optional)
- Housing: 304 Stainless Steel (316 Stainless Steel Optional)
Environmental Rating
- IP66 (IP68 Optional)
Electromagnetic Rating
- Built to Suppress RFI, EMI and ESD Protection
Service Life
- > 10 Years
Weight
- Approximately 3.3 lb
Applications
Applications
- General Industrial
- Pulp & Paper
- Water & Wastewater
- Power Generation
- Food & Beverage
