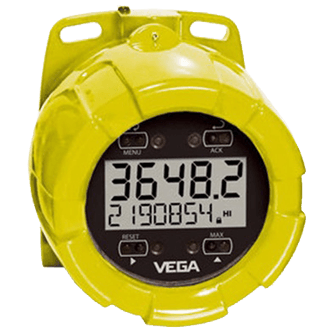

Vegadis 64 Loop-Powered Indicator

Brand: VEGA
The VEGADIS 64 is a loop-powered, explosion-proof display. It can be placed in series on any 4-20 mA line and display the measured value.

In addition to being explosion-proof, the enclosure has a NEMA 4X / IP68 rating.

It provides protection from the elements, high impact, corrosion, and electrical interference.

This versatility allows it to be installed safely in almost every environment.
Features
  • 5 Digit Measured Value Upper Display
  • 7 Digit Alpha Numeric Character Lower Display
  • Thru-Glass Button Programming
  • Wall or Pipe Mounting
  • HART Transparent
  • 32-Point, Square Root, or Exponential Linearization
  • Option of Analog Input Rate/Totalizer Available
The VEGADIS 64 is a loop-powered, explosion-proof display. It can be placed in series on any 4-20 mA line and display the measured value.

In addition to being explosion-proof, the enclosure has a NEMA 4X / IP68 rating.

It provides protection from the elements, high impact, corrosion, and electrical interference.

This versatility allows it to be installed safely in almost every environment.
Features
  • 5 Digit Measured Value Upper Display
  • 7 Digit Alpha Numeric Character Lower Display
  • Thru-Glass Button Programming
  • Wall or Pipe Mounting
  • HART Transparent
  • 32-Point, Square Root, or Exponential Linearization
  • Option of Analog Input Rate/Totalizer Available

Specifications

Brand

Accuracy

  • ± 0.03 % for Calibrated Span

Ambient Temperature Range

  • -40° to 85° C (-40° to 185° F)

Approvals & Certifications

  • CSA
  • FM

Conduit Connection

  • 1/2” NPT Female
  • 3/4” NPT

Display

  • Lower: Seven Characters 0.40” (10.2 mm) High
  • Upper: Five Digits, 0,70” (17.8 mm) High

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X
  • NEMA 7
  • NEMA 9

Input

  • 4-20 mA
  • Over Current Protection up to 2 A, Max.

Materials of Construction

  • Die Cast Aluminum

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Power Requirement

  • 9-30 Vdc

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Voltage Drop

  • 3.0 Vdc at 20 mA without Loop-Powered Backlight
  • 6.0 Vdc at 20 mA with Loop-Powered Backlight

Window Material

  • Glass
