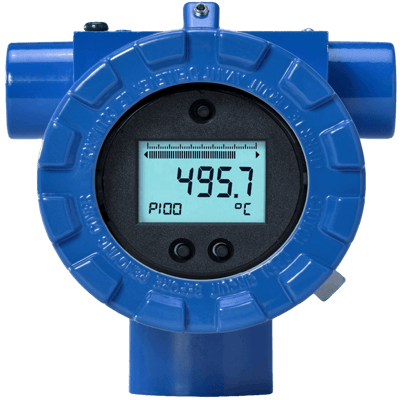

Model 9080HT Indicating Temperature Transmitter

Brand: International Metal Engineering (IME)
Request Information
Features:
  • Universal settings with HART protocol for various input signals
  • 4-20 mA Analog output + HART
  • Galvanic isolation
  • An internal temperature sensor for active temperature compensation
  • Wide voltage supply
  • Customer specific measurement range settings
  • Multiple backlight rotatable LCD display
  • Choice of copper free aluminum or 316 stainless steel dual compartment enclosure
  • Explosion-Proof certified
show more
Features:
  • Universal settings with HART protocol for various input signals
  • 4-20 mA Analog output + HART
  • Galvanic isolation
  • An internal temperature sensor for active temperature compensation
  • Wide voltage supply
  • Customer specific measurement range settings
  • Multiple backlight rotatable LCD display
  • Choice of copper free aluminum or 316 stainless steel dual compartment enclosure
  • Explosion-Proof certified
Close
Close

Specifications

Brand

Accuracy

  • Digital Accuracy: ± 0.1° C (± 0.18° F)

Alarm

  • Overranging: Linear Rise to 20.8 mA
  • Sensor Break, Sensor Open Circuit: < 3.8 mA
  • Underranging: Linear Drop to 3.8 mA

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F) with Display
  • -40° to 85° C (-40° to 195° F) without Display

Applications

  • Process Industry where Vibration, Inclement Weather & Corrosive Atmospheres Prevail

Approvals & Certifications

  • ATEX
  • CE
  • EMC Interference Immunity & Interference Emission According to GB, T17626.2-1998, Compliance with IEC 61000-4-3: 1995
  • EX II 2 GD Ex d IIC T6 Gb Ex Tb IIIC T85° C Db IP68 Ta = -40° to 60° C
  • FM (C,US) Class I, Division I Groups B, C, D, Class II/III, Division I Groups E, F, G
  • IECEx d IIC T6 Gb Ex Tb IIIC T85° C Db IP68 Ta = -40° to 60° C

Communication

  • HART

Conduit Connection

  • 1/2” NPT Female
  • 3/4” NPT Female
  • M20 x 1.5 Female

Delay Time

  • Switch on Delay: ≤ 5 seconds

Display

  • Multiple Backlight Rotatable LCD Display

Enclosure Finish

  • Electro-Polished for Stainless Steel
  • Epoxy Painted for Aluminum

Enclosure, Body Material

  • 316 Stainless Steel
  • Copper-Free Aluminum

Environmental Protection

  • Explosion-proof
  • IP66
  • IP68
  • NEMA 4X

Filter

  • Filter Configuration: 0-160 μA

Instrument Connection

  • 1/2” BSP Female
  • 1/2” NPT Female
  • 3/4” NPT Female
  • M16 x 2 Female
  • M20 x 1.5 Female

Isolation

  • Galvanic Isolation: 2 kVac (Input/Output)

Materials of Construction

  • Hollow Square, L Shape Mounting Bracket: 316 Stainless Steel
  • Mounting Bracket (IME Model 175NR & 175 MM): Stainless Steel

Mounting

  • 2” Pipe Mounting with U Bolt
  • Mounting Bracket (Hollow Square, L Shape or Low Cost)
  • Panel Mounting
  • Wall Mounting

Output

  • 2-Wire, 4-20 mA, Analog Output

Resistance

  • Resistance Transmitter: 0 to 10,000 ohms

Resolution

  • 0.3 µA

Response Time

  • 1 second

RTD Type

  • Cu100
  • Cu50
  • Ni100
  • Ni1000
  • Ni500
  • Pt100
  • Pt1000
  • Pt500

Sensor, Probe Connection

  • RTD: 3-Wire

Sensor, Probe Type

  • B Thermocouple (PtRh30-PtRh6)
  • E Thermocouple (NiCr-CuNi)
  • J Thermocouple (Fe-CuNi)
  • K Thermocouple (NiCr-Ni)
  • N Thermocouple (NiCrSi-NiSi)
  • RTD
  • R Thermocouple (PtRh13-Pt)
  • S Thermocouple (PtRh10-Pt)
  • T Thermocouple (Cu-CuNi)

Stability

  • Long Term Stability: ≤ 0.05 %/Year

Storage Temperature

  • -40° to 100° C (-40° to 212° F)

Supply Voltage

  • 10.5-45 Vdc

Temperature Range

  • Calibration Temperature: 23° C (73.4° F) ± 5K
  • RTD: -200° to 850° C (-328° to 1,562° F)
  • Thermocouple: -270° to 1,820° C (-454° to 3,308° F)

Voltage

  • Voltage Transmitter: -100 to 2,000 mV
Close
