Gas Density Monitor - GDM 233.52.100 TA

Brand: WIKA Alexander Wiegand SE & Co. KG

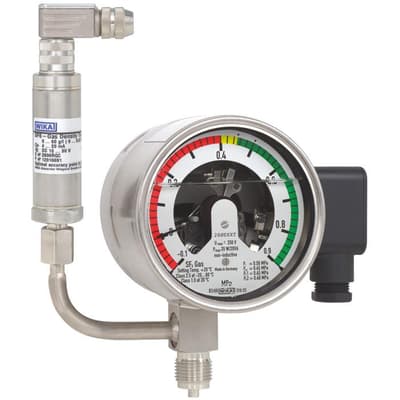

Model 233.52.100 TA features a Gas Density Transmitter attached to the side of the Gas Density Monitor's pressure connection.

It functions fully as a standard GD-10 Gas Density Transmitter, however, the combination allows for both instruments to obtain a density reading through a single connection to the tank.

WIKA transmitter GD-10 L (with L-plug connection) is shown in the drawing below, however GD-10 C (with attached cable) or GD-10 F (with robust field case) can also be used.
Features
  • Local readout with alarm contacts.
  • Remote readout (output 4 … 20 mA, 2-wire system), measuring ranges from 0 ... 10 g/liter to 0 ... 80 g/liter.
  • High EMI performance, CE-conformity.
  • Hermetically sealed, therefore no influence by atmospheric pressure fluctuation and differences in altitude.
Model 233.52.100 TA features a Gas Density Transmitter attached to the side of the Gas Density Monitor's pressure connection.

It functions fully as a standard GD-10 Gas Density Transmitter, however, the combination allows for both instruments to obtain a density reading through a single connection to the tank.

WIKA transmitter GD-10 L (with L-plug connection) is shown in the drawing below, however GD-10 C (with attached cable) or GD-10 F (with robust field case) can also be used.
Features
  • Local readout with alarm contacts.
  • Remote readout (output 4 … 20 mA, 2-wire system), measuring ranges from 0 ... 10 g/liter to 0 ... 80 g/liter.
  • High EMI performance, CE-conformity.
  • Hermetically sealed, therefore no influence by atmospheric pressure fluctuation and differences in altitude.

Specifications

Certifications & Approvals

  • CE

Environmental Protection

  • IP65

Window Material

  • Laminated Safety Glass

Dial Material

  • Aluminium

Process Connection

  • G 1/2” B

Process Conenction Material

  • Stainless Steel

Connection Location

  • Lower Mount (LM)

Nominal Size

  • 100 mm

Applications

  • Gas density monitoring of closed SF6 tanks
  • For indoor and outdoor installation in SF6-gas-isolated switching units
