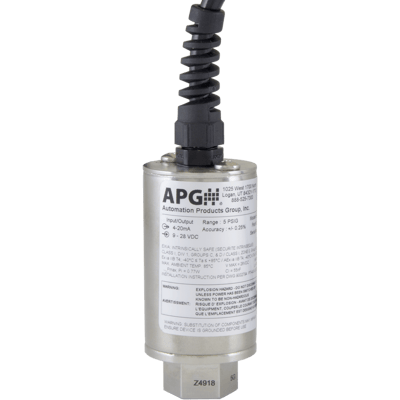

PT-400 Pressure Transducer, Intrinsically-Safe

Brand: Automation Products Group - APG
The PT-400 offers high accuracy and reliability over a wide range of pressures. The small size, integrated electronics, wide operating temperature range, ATEX and IECEx approval, and durability make the PT-400 the perfect instrument for static and dynamic pressure measurements with an amplified output signal.

The PT-400 is built for heavy-duty applications that involve high pressures, Hazardous Areas, high vibration, and moisture.

Made for Harsh Conditions & Hazardous Areas
The PT-400 is built for harsh environments, high vibration, high-pressure spikes, and even extended temperature compensation.

Durable Construction
The PT-400 pressure transmitter is built for harsh environments, high vibration, high-pressure spikes, and even extended temperature compensation.

Hazardous Area Certifications
The PT-400 pressure sensor has certifications for use in Hazardous Areas, including CSA (Class 1, Div 1), ATEX (Ex II 1G Ex ia IIB T4 Ga), and IECEx (Ex ia IIB T4 Ga) for global use.

Modbus Output
A Modbus RTU output on the PT-400 pressure transmitter is compatible with any Modbus PLC or controller.
Features
  • Available ranges from 0 - 10,000 psi
  • Standard outputs
    • 4-20 mA
    • 0-5 Vdc
    • RS-485
  • High overpressure capability
  • Zero and Span adjustments
  • cCSAus Hazardous Area approved
  • ATEX Approved
  • IECEx Approved



The PT-400 offers high accuracy and reliability over a wide range of pressures. The small size, integrated electronics, wide operating temperature range, ATEX and IECEx approval, and durability make the PT-400 the perfect instrument for static and dynamic pressure measurements with an amplified output signal.

The PT-400 is built for heavy-duty applications that involve high pressures, Hazardous Areas, high vibration, and moisture.

Made for Harsh Conditions & Hazardous Areas
The PT-400 is built for harsh environments, high vibration, high-pressure spikes, and even extended temperature compensation.

Durable Construction
The PT-400 pressure transmitter is built for harsh environments, high vibration, high-pressure spikes, and even extended temperature compensation.

Hazardous Area Certifications
The PT-400 pressure sensor has certifications for use in Hazardous Areas, including CSA (Class 1, Div 1), ATEX (Ex II 1G Ex ia IIB T4 Ga), and IECEx (Ex ia IIB T4 Ga) for global use.

Modbus Output
A Modbus RTU output on the PT-400 pressure transmitter is compatible with any Modbus PLC or controller.
Features
  • Available ranges from 0 - 10,000 psi
  • Standard outputs
    • 4-20 mA
    • 0-5 Vdc
    • RS-485
  • High overpressure capability
  • Zero and Span adjustments
  • cCSAus Hazardous Area approved
  • ATEX Approved
  • IECEx Approved



Close

Displaying prices & availability for Ohio, United States in USD. Change location or currency.

Models matching criteria: 6
PT-400-L1-200-PSI-G-E36-0-P0-N0-M1-S10
APG PT-400 Pressure Sensor, 0-200 psi, Gauge, 1/2" Elect.6" Wires, 1/4" MNPT, +/-0.25%, 316L SST view more
  • PT-400: Intrinsically Safe, Heavy-Duty Pressure Transducer for harsh Environments
  • L1: Operation - 4-20 mA Output
  • 200 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E36: Electrical Connection - 1/2" MNPT, 6" Wires
  • 0: Cable Length in Feet
  • P0: Process Connection - 1/4" MNPT
  • N0: Accuracy: ± 0.25%
  • M1: Wetted Materials - 316L Stainless Steel
  • S10: Compensated Temperature Range
    • -10° to +70° C
    • 14° to +158° F
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40° to 85° C
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20mA
    • IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
      • IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
      • Class I, Zone 0; AEx ia IIB T4
    • ATEX
      • 4-20 mA
      • Ex II 1G Ex ia IIB T4 Ga
    • IECEx
      • 4-20 mA
      • Ex ia IIB T4 Ga
11 In Stock
$539.71 USD
Non-Cancellable / Non-Refundable
PT-400-L1-100-PSI-G-E36-0-P0-N0-M1-S10
APG PT-400 Pressure Sensor, 0-100 psi, Gauge, 1/2"5-ft, 1/4" MNPT, +/-0.25%, 316L SST, HighVibration view more
  • PT-400: Intrinsically Safe, Heavy Duty Pressure Transducer for harsh environments
  • L1: Operation - 4-20 mA Output
  • 100 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E36: Electrical Connection - 1/2" MNPT with 6" flying leads, long can
  • P0: Process Connection - 1/4-18 MNPT
  • N0: Accuracy: ± 0.25%
  • M1: Wetted Materials - 316L SS
  • S10: Compensated Temperature Range
    • -10° to +70° C
    • 14° to +158° F
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40° to 85° C
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20 mA
    • IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
      • IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
      • Class I, Zone 0; AEx ia IIB T4
    • ATEX
      • 4-20 mA
      • Ex II 1G Ex ia IIB T4 Ga
    • IECEx
      • 4-20 mA
      • Ex ia IIB T4 Ga
9 In Stock
$539.71 USD
Non-Cancellable / Non-Refundable
PT-400-L1-50-PSIG-E19-5-P0-N0-M1-S10
APG PT-400 Pressure Sensor, 0-50psi, Gauge, Elect.1/2" MNPT, 5' Cable, Process 1/4" MNPT 316LSS NCNR view more
  • PT-400: Intrinsically Safe, Heavy-Duty Pressure Transducer for harsh Environments
  • L1: Operation - 4-20 mA Output
  • 50 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E19: Electrical Connection - 1/2" MNPT with cable, short can
  • 5: Cable Length in Feet
  • P0: Process Connection - 1/4" MNPT
  • N0: Accuracy: ± 0.25%
  • M1: Wetted Materials - 316L SS
  • S10: Compensated Temperature Range
    • -10° to +70° C
    • 14° to +158° F
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40° to 85° C
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20 mA
    • IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
      • IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
      • Class I, Zone 0; AEx ia IIB T4
    • ATEX
      • 4-20 mA
      • Ex II 1G Ex ia IIB T4 Ga
    • IECEx
      • 4-20 mA
      • Ex ia IIB T4 Ga
1 In Stock
$602.54 USD
Non-Cancellable / Non-Refundable
PT-400-L1-50-PSI-G-E5-10-P0-N0-M1-S10
APG PT-400 Pressure Sensor, 0-50psi, Gauge, Pigtail with 10' Cable, 316L SST view more
  • PT-400: Intrinsically Safe, Heavy-Duty Pressure Transducer for harsh Environments
  • L1: Operation - 4-20 mA Output
  • 50 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E5: Electrical Connection - Pigtail with cable
  • 10: Length of Cable in Feet
  • P0: Process Connection - 1/4" MNPT
  • N0: Accuracy: ± 0.25%
  • M1: Wetted Materials - 316L SS
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40° to 85° C
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20 mA
    • IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
      • IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
      • Class I, Zone 0; AEx ia IIB T4
    • ATEX
      • 4-20 mA
      • Ex II 1G Ex ia IIB T4 Ga
    • IECEx
      • 4-20 mA
      • Ex ia IIB T4 Ga
3 - 5 weeks
$680.04 USD
Non-Cancellable / Non-Refundable
PT-400-L1-5-PSI-G-E5-10-P0-N0-M1-S11
APG PT-400 Pressure Sensor, 0-5 psig, 4-20 mA, Pigtail, 1/4" MNPT, +/-0.25%, 316L SST view more
  • PT-400: Intrinsically Safe, Heavy-Duty Pressure Transducer for harsh Environments
    • Can Size: 2.5"
  • L1: Operation - 4-20 mA Output
  • 5 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E5: Electrical Connection - Pigtail with cable
  • 10: Length of Cable in Feet
  • P0: Process Connection - 1/4" MNPT
  • N0: Accuracy - ±0.25%
  • M1: Wetted Materials - 316L SS
  • S11: No Temperature Specification
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40° to 85° C
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20 mA
    • IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
      • IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
      • Class I, Zone 0; AEx ia IIB T4
    • ATEX
      • 4-20 mA
      • Ex II 1G Ex ia IIB T4 Ga
    • IECEx
      • 4-20 mA
      • Ex ia IIB T4 Ga
3 - 5 weeks
$680.04 USD
Non-Cancellable / Non-Refundable
PT-400-L1-1-PSI-G-E5-10-P0-N0-M1-S11
APG PT-400 Pressure Sensor, 1 psi, Gage, 1/2" NPT, 10ft, 1/4" MNPT, +/-0.25%, 316L SS view more
  • PT-400: Intrinsically Safe, Heavy-Duty Pressure Transducer for harsh Environments
    • Can Size: 2.5"
  • L1: Operation - 4-20 mA Output
  • 1 PSI: Pressure Range
  • G: Pressure Type - Gauge
  • E5: Electrical Connection - Pigtail with cable
  • 10: Cable Length in Feet
  • P0: Process Connection - 1/4-18" MNPT
  • N0: Accuracy: ± 0.25%
  • M1: Wetted Materials - 316L Stainless Steel
  • S11: No Temperature Specification
  • Certification
    • CSA/cCSAus Contract #237484
    • Ambient: -40° to 85°C
    • Max. Working Pressure: 10,000 psi
    • 0-5 VDC, 0-10 VDC, 4-20 mA
    • IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4
    • Class I, Zone 2; AEx nL IIB T4
    • 4-20 mA
      • IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4
      • Class I, Zone 0; AEx ia IIB T4
    • ATEX
      • 4-20 mA
      • Ex II 1G Ex ia IIB T4 Ga
    • IECEx
      • 4-20 mA
      • Ex ia IIB T4 Ga
3 - 5 weeks
$680.04 USD
Close
Close

Specifications

Brand

Accuracy

  • ± 0.25 % BFSL

Approvals & Certifications

  • ATEX
  • CSA - Class I, Div. 1, Groups C, D & Class I, Div. 2, Groups C, D
  • IEC Ex

Burst Pressure

  • 3 times Full Scale

Compensated Temperature

  • -17° to 54°C, 0° to 130°F

Electrical Connectors

  • 1/2” NPT with 6” Flying Leads
  • 4-Pin Bayonet PT1H-8-4P or Equivalent
  • 4-Pin M12 Micro Connector
  • 6-Pin Bayonet PT02E-10-6P or Equivalent
  • DIN 43650
  • Pigtail with Cable

Input Power

  • 9 - 28 Vdc

NPT Connection

  • 1/2” NPT Male
  • 1/4” NPT Female
  • 1/4” NPT Male

Operating Temperature

  • -40° to 65.5°C, -40° to 150°F

Output

  • 0 - 10 Vdc
  • 0 - 5 Vdc
  • 4 - 20 mA

Overpressure & Static Pressure Limits

  • 2 x Full Scale

Pressure Range

  • bar: 0 to 689
  • kPa: 0 to 68,947
  • psig: 0 to 10,000

Reverse Polarity Protection

  • Protected Against Reverse Polarity, Surge, Per IEC 61000-4-5

Stability

  • ≤ 0.5 % of Full Scale Output/Year

Storage Temperature

  • -40° to 82°C, -40° to 180°F

Tri-Clamp Connection

  • 1-1/2” Tri-Clover with 1/2” Diaphragm

UNF/UNC Connection

  • 9/16”-18 UNF Female High Pressure SnoTrik
  • 9/16”-18 UNF Male High Pressure SnoTrik

Wetted Materials

  • 316L Stainless Steel
  • 630 Stainless Steel
Close

Applications

  • C I, D 1 Hazardous Locations
  • Compression Skids
  • Die Casting
  • Gas Compressors
  • High Pressure, High Vibration, High Shock
  • Hydraulic and Pneumatic Controls
  • Hydraulic Lines
  • Irrigation Pumps Pressure
  • Oilfield Truck Pressures
  • Pumper Trucks
  • Rolling and Steel Mills
  • Skidded Process Systems
  • Water Treatment
  • Wellhead Pressure
