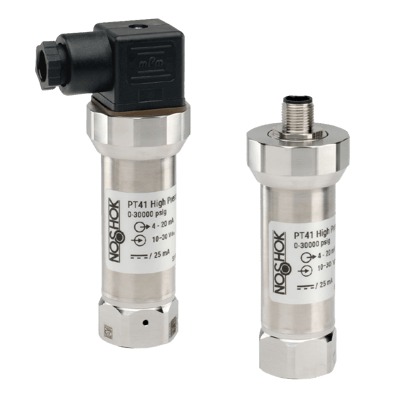

Images are representations only.
Description
Features
- Gauge ranges from 23,000 psig to 145,000 psig
- Current and voltage outputs available
- Elgiloy and 17-4PH Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
- RoHS compliant
Configure
Specifications
Specifications
Brand
Accuracy
- ±0.5% of Span, Optional ±0.25% of Span, Non-linearity Best Fit Straight Line Per IEC 61298-2 at Reference Conditions
Temperature Range
- Ambient: -4° to 176° F (-20° to 80° C)
- Compensated & Media: 32° to 176° F (0° to 80° C)
- Storage: -40° to 185° F (-40° to 85° C)
Pressure Range
- 23,000 to 145,000 psi
Certifications & Approvals
- RoHS
- CE
- cULus
Output Signal
- 4-20 mA, 2-wire
- 0-5 Vdc, 3-wire
- 0-10 Vdc, 3-wire
Adjustment
- ± 10% Full Scale for Zero and Span
Response Time
- < 1 ms (Between 10% and 90% Full Scale)
Power Requirement
- 10-30 Vdc
- 14-30 Vdc
Materials of Construction
- Measuring Element: Elgiloy, 17-4PH Stainless Steel
- Housing: 316 Stainless Steel
- Process Connection: 17-4PH Stainless Steel
Environmental Rating
- IP65: DIN EN 175301-803 Form C
- IP67: 4-pin Bayonet, 6-pin Bayonet, 1/2" NPT Conduit, M12 x 1 (4-PIN) Integral Cable
Electromagnetic Rating
- CE Compliant to EMC Norm EN 61326:2014/A1:1998
- RFI, EMI and ESD Protection
Electrical Protection
- Reverse Polarity, Overvoltage and Short Circuit Protection
Shock
- 100 g’s According to IEC 60068-2-27
Vibration
- 15 g’s According to IEC 60068-2-6
Weight
- Approximately 7.5 oz
Applications
Applications
- Hydraulics Testing
- Laboratory & Test Equipment
- High Pressure Cleaning
- Power Generation
- Waterjet Cutting
