Description

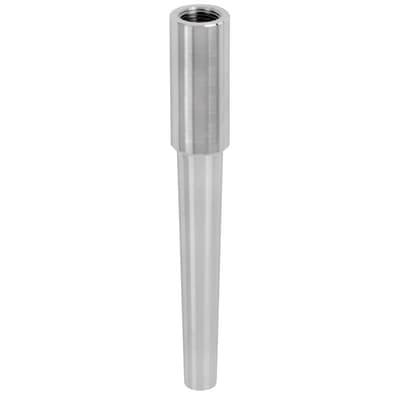

The TW20 series of solid-machined weld-in thermowells are suitable for use with numerous electrical and mechanical thermometers from WIKA.
Due to the heavy-duty design, these international design thermowells are the first choice for use the chemical and petrochemical industries and in plant construction.
Features- Different dimensions for standardised welding sockets.
- International standard.
- Possible thermowell forms:.
- Model TW20-A: tapered.
- Model TW20-B: straight.
- Model TW20-C: stepped.
- "Quill Tip" version (with open tip).
Specifications
Specifications
Versions
- Design TW20-A: Tapered
- Option: Injection quills Version
- Design TW20-C: Stepped
- Design TW20-B: Straight
Thermowell Materials
- Other materials on Request
- Special materials
- Stainless Steel 1.4571
- A105
- Stainless Steel 304/304L
- Stainless Steel 316/316L
Process Connection
- Other threads on Request
- Ø 48.3 mm [1.5 in]
- Ø 33.4 mm [1 in]
- Ø 26.7 mm [3/4 in]
Connection to Thermometer
- Other threads on Request
- “Quill Tip” version with weld-in Connection 1/2” and 3/4”
- G 1/2 Female
- 1/2” NPT Female
Bore Size
- Ø 8.5 mm [0.355 in]
- Ø 6.6 mm [0.260 in]
Insertion Length U
- To Customer Specification
Connection Length H
- To Customer Specification
Maximum Process Temperature, Process Pressure
- - Density of medium
- - Flow rate
- Process Conditions
- - Material
- - Dimensions
- Thermowell Design
- Depending on:
Wake Frequency Calculation (Option)
- Per ASME PTC 19.3 TW-2016 recommended in critical applications as a WIKA engineering Service
- For further information see Technical information IN 00.15 “Wake frequency calculation”.
