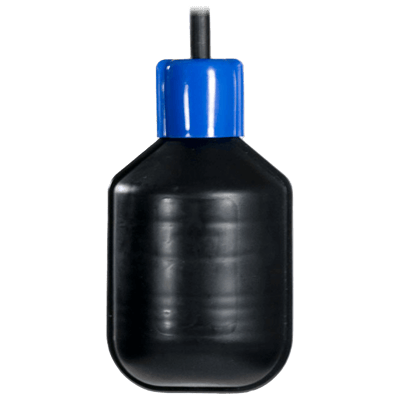

FT-100/300 Level Float Switch

Brand: Automation Products Group - APG
Request Information
Series FT-100 / FT-300 Cable Float Switches are single point level sensors that switch ON or OFF at one level. They work well as alarm point indicators. The switch operating levels are easily adjustable, and the floats are designed for use in clean water and sewage applications.
Features

  • Highly chemical resistant
  • Proven reliability in operation
  • Not sensitive to rotation



Series FT-100 / FT-300 Cable Float Switches are single point level sensors that switch ON or OFF at one level. They work well as alarm point indicators. The switch operating levels are easily adjustable, and the floats are designed for use in clean water and sewage applications.
Features

  • Highly chemical resistant
  • Proven reliability in operation
  • Not sensitive to rotation



Close
Close

Specifications

Brand

Accuracy

  • ± 0.25 % of Span

Approvals & Certifications

  • CPE
  • CSA General-purpose
  • UL

Electrical Connectors

  • 18 Gauge, 2-Conductor (NO/NC)
  • 18 Gauge, 3-Conductor (SPDT)

Enclosure, Body Material

  • High Impact, Corrosion-Resistant Polypropylene

Frequency

  • 50/60 Hz

Operating Voltages

  • 125/250 Vac, 5 A

Pressure Rating

  • 13 psi (0.9 bar, 90 kPa)
  • Maximum

Process Temperature

  • 60° C (140° F)
