Description

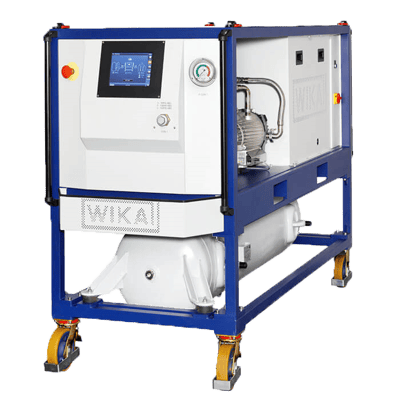

The gas-handling equipments of the GPU platform enable the complete process from initial filling to processing to be carried out safely and intuitively.
Features- Oil-free compressor.
- Oil-free vacuum compressor.
- Dual cleaning of particles, humidity and decomposition products.
- Low maintenance effort.
- Operation via 10" IntelliTouch touchscreen.
Specifications
Specifications
Safety Systems
- Safety Control: Based on SIL 2 components, SF₆ gas warning Equipment: 0 ... 2,000 ppmv, based on infrared technology
Filter Element
- Molecular sieve, Aluminium oxide, Particle filter 1 μm
- Maximum water absorption: 75 g
Control Element
- 10” touchscreen
Permissible Ambient Temperature
- Operation: -10° to 40° C
- Storage: -20° to +60° C
Permissible Air Humidity
- < 95 % Relative Humidity Non-Condensing
Ingress Protection
- IP42
Weight
- Approximately 665 kg without tank
- Approximately 1,000 kg with empty 300-litre tank
- Approximately 1,300 kg with empty 600-litre tank
- Approximately 1,050 kg with empty gas cylinder stowage
Tyres
- Solid Rubber, Ø 200 mm, with rollover Protection
Applications
Applications
Filling, cleaning, recovery, evacuation and venting of filled switchgear, linear accelerators and other SF6 gas-filled equipment
