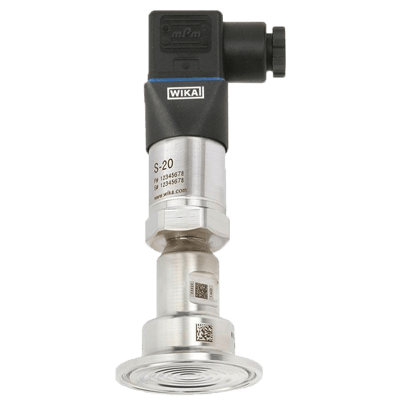

Model DSS22T High Quality Pressure Sensor with Mounted Diaphragm Seal

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
The DSS22T complies with all requirements of the food industry. The particular suitability for foodstuffs rests on the fact that the measuring point can be cleaned while installed.

The requirements of CIP (cleaning in place) and SIP (sterilisation in place) are fulfilled. The clamp connection enables the quick and easy dismounting and thus a simple cleaning with seal replacement.

The proven, all-welded construction ensures a long service life and permanent sealing.

The DSS22T is particularly well suited for gases, compressed air and vapour as well as liquid, pasty, powdery and crystallising media.
Features
  • Quick cleaning, without residue.
  • Clamp connection easy to open for cleaning and seal replacement.
  • Suitable for SIP and CIP.
The DSS22T complies with all requirements of the food industry. The particular suitability for foodstuffs rests on the fact that the measuring point can be cleaned while installed.

The requirements of CIP (cleaning in place) and SIP (sterilisation in place) are fulfilled. The clamp connection enables the quick and easy dismounting and thus a simple cleaning with seal replacement.

The proven, all-welded construction ensures a long service life and permanent sealing.

The DSS22T is particularly well suited for gases, compressed air and vapour as well as liquid, pasty, powdery and crystallising media.
Features
  • Quick cleaning, without residue.
  • Clamp connection easy to open for cleaning and seal replacement.
  • Suitable for SIP and CIP.
Close

Specifications

Brand

Certifications & Approvals

  • CE
  • EHEDG

Accuracy

  • ≤ ± 0.5 % of Span

Environmental Protection

  • IP65

Process Connection

  • Clamp DN 1-1/2”, 2”, PN 40
  • Clamp DN 32, DN 40, PN 40

Measurement Range

  • -1 to 25 bar (-30 inHg to 300 psi)

Fill Fluid

  • Medicinal White Mineral Oil KN 92

Wetted Material

  • Stainless Steel 1.4435 [316L]

Case Material

  • Stainless Steel 1.4571 [316Ti]

Material of Construction

  • Zero Adjustment Ring/Angular Connector: PBT/PET GF30
Close

Applications

  • Hygienic pressure measurement in sanitary applications for the food and beverage industry
  • Mounting to pipelines and vessels with 4 ... 20 mA output signal
  • Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing
  • For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media
