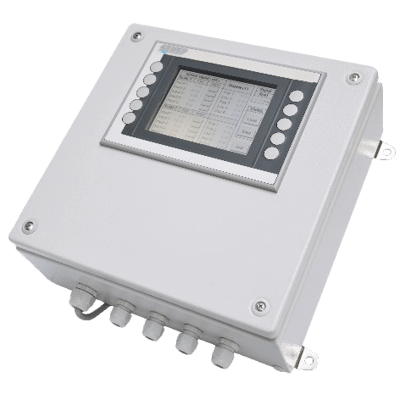

Images are representations only.

SPREADER-BOY Container Weighing System

Brand: Sensy - Sensors & Synergy S.A.
Request Information
New generation of electronic data logging for containers weighing during handling. This one is designed to meet the new SOLAS requirement making it mandatory for containers to be weighed before they are loaded aboard ships.
Features
  • 4 or 8 x 4 to 20 mA Analog inputs for force transducers
  • 4 digital inputs (start, stop and tare signal)
  • 1 output relay being able to signal an alarm (audible, luminous warning signal, etc.)
  • Analog outputs according to the measurements
  • Data recording on a CompactFlash memory card
  • Color touch screen
  • Ethernet connection
  • RS485 and PROFIBUS interface (option)
New generation of electronic data logging for containers weighing during handling. This one is designed to meet the new SOLAS requirement making it mandatory for containers to be weighed before they are loaded aboard ships.
Features
  • 4 or 8 x 4 to 20 mA Analog inputs for force transducers
  • 4 digital inputs (start, stop and tare signal)
  • 1 output relay being able to signal an alarm (audible, luminous warning signal, etc.)
  • Analog outputs according to the measurements
  • Data recording on a CompactFlash memory card
  • Color touch screen
  • Ethernet connection
  • RS485 and PROFIBUS interface (option)
Close
Close

Specifications

Brand

Accuracy

  • 0.1 % of Full Scale

Approvals & Certifications

  • CE

Cable Length

  • 32.81 feet (10 metres)

Capacity

  • 17 T
  • 5 A at 240 Vac/28 Vdc - Breaking Capacity Relays

Communication

  • Ethernet
  • PROFIBUS Interface
  • RS-485

Display

  • 5.7” Touchscreen Color Display

Environmental Protection

  • IP65
  • IP67M

Input

  • 4 or 8 x 4-20 mA - Analog Input
  • 4-Digital Inputs

Power Supply

  • 100-240 Vac
  • 24 Vdc

Relay Output

  • 2 Relays

Sensitivity

  • 4-20 mA

Service Temperature

  • 0° to 55° C (32° to 131° F)

Storage Temperature

  • -15° to 70° C (5° to 158° F)
