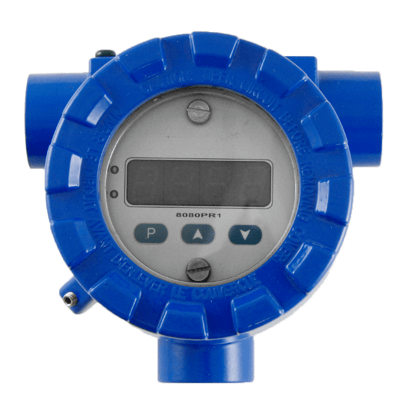

8080PR Model Dual Relay Temperature Indicator

Brand: International Metal Engineering (IME)
  • Dual Alarm
  • 4-Digit LED Indicator
  • 2 Conduit Connections
    • 3/4" NPT
    • 1/2" NPT
    • M20 x 1.5P
  • 1 Instrument Connection
    • M16 x 2P
    • 1/2" NPT
  • Input: RTD
  • Output: 4-20mA Retransmission
  • Temperature Range: -50°C to +75°C (-58°F to +167°F)
  • Materials of Construction
    • Enclosure: Epoxy Coated Aluminum or 316 Stainless Steel
    • O-Rings: Buna-N
    • Mounting Bracket: 316 Stainless Steel
  • Environmental Rating: NEMA 4X, IP68
  • Approvals: FM, CSA, ATEX, IECEx Explosion-Proof
  • Dual Alarm
  • 4-Digit LED Indicator
  • 2 Conduit Connections
    • 3/4" NPT
    • 1/2" NPT
    • M20 x 1.5P
  • 1 Instrument Connection
    • M16 x 2P
    • 1/2" NPT
  • Input: RTD
  • Output: 4-20mA Retransmission
  • Temperature Range: -50°C to +75°C (-58°F to +167°F)
  • Materials of Construction
    • Enclosure: Epoxy Coated Aluminum or 316 Stainless Steel
    • O-Rings: Buna-N
    • Mounting Bracket: 316 Stainless Steel
  • Environmental Rating: NEMA 4X, IP68
  • Approvals: FM, CSA, ATEX, IECEx Explosion-Proof
Close

Displaying prices & availability for Ohio, United States in USD. Change location or currency.

Models matching criteria: 3
8080PR3-A-04-E1-00-0
IME Model 8080 Temperature Indicator w/Dual Relay/Channel, Aluminum, 1/2" NPT, Intrinsic Safe view more
  • Dual Channel, LED Temperature Indicator with Dual Alarms
  • 4 -Digit RED LED's (10mm / .4" high)
  • Input: 1 RTD, 100 Ohm Platinum, 3 wire
  • Supply Voltage: 12 ~ 28 VDC
  • Outputs
    • 2 Relays, SPDT, Independent Adjustable Setpoints & Deadbands
  • (2)  Conduit Connections: 3/4" FNPT (sides)
  • (1) Instrument Connection: 1/2" FNPT (bottom)
  • Temperature Range: -40°C to +60°C (-40°F to +140°F)
  • Enclosure
    • Approvals: CSA/FM Explosion Proof Class 1, Division 1, Groups B,C & D
    • Environmental Rating: NEMA 4X, IP68
    • Body: Epoxy Coated Aluminum, Glass Cover w Buna O-Ring
  • No Mounting Bracket: Direct Mount to RTD
    • 1 In Stock
    $789.98 USD
    8080PR1-A-04-E1-00-0
    IME Model 8080 Temperature Indicator w/Dual Relays, 4-20 mA, Aluminum, 1/2" NPT, Intrinsic Safe view more
    • Single-Source Temperature Indicator with 2 Independent Relays/Alarms and 4-20mA Retransmission
    • 4 -Digit RED LED's (10mm / .4" high)
    • Input: 1 RTD, 100 Ohm Platinum, 3 wire
    • Supply Voltage: 12 ~ 28 VDC
    • Outputs
      • 2 Relays, SPDT, Independent Adjustable Setpoints & Deadbands
      • 4-20 mA (Input Re-Transmission or Proportional Output)
    • (2)  Conduit Connections: 3/4" FNPT (sides)
    • (1) Instrument Connection: 1/2" FNPT (bottom)
    • Temperature Range: -40°C to +60°C (-40°F to +140°F)
    • Enclosure
      • Approvals: CSA/FM Explosion Proof Class 1, Division 1, Groups B,C & D
      • Environmental Rating: NEMA 4X, IP68
      • Body: Epoxy Coated Aluminum, Glass Cover w Buna O-Ring
    • No Mounting Bracket: Direct Mount to RTD
    4 - 6 weeks
    $746.06 USD
    8080PR2-A-04-E1-00-0
    IME Model 8080 Temperature Indicator w/Dual Relays, 4-20 mA, PID,Aluminum, 1/2" NPT, Intrinsic Safe view more
    • Single-Source Temperature Indicator with 2 Independent Relays/Alarms and PID Controlled Output
    • 4 -Digit RED LED's (10mm / .4" high)
    • Input: 1 RTD, 100 Ohm Platinum, 3 wire
    • Supply Voltage: 12 ~ 28 VDC
    • Outputs
      • 2 Relays, SPDT, Independent Adjustable Setpoints & Deadbands
      • PID Controlled Output
    • (2)  Conduit Connections: 3/4" FNPT (sides)
    • (1) Instrument Connection: 1/2" FNPT (bottom)
    • Temperature Range: -40°C to +60°C (-40°F to +140°F)
    • Enclosure
      • Approvals: CSA/FM Explosion Proof Class 1, Division 1, Groups B,C & D
      • Environmental Rating: NEMA 4X, IP68
      • Body: Epoxy Coated Aluminum, Glass Cover w Buna O-Ring
    • No Mounting Bracket: Direct Mount to RTD
    Out of Stock
    Close
    Close

    Specifications

    Brand

    Accuracy

    • ± 0.5° C (± 0.9° F)

    Alarm

    • 2 Sets SPDT, Rated 10 A at 250 Vac, 50/60 Hz
    • None

    Approvals & Certifications

    • ATEX
    • CSA
    • FM
    • IEC Ex

    Conduit Connection

    • 1/2” NPT
    • 3/4” NPT
    • M20 x 1.5

    Digital Stability

    • 0.1 % of Calibrated Range ± 1-Digit over 6 Months

    Display

    • 4-Digit LED

    Enclosure, Body Material

    • 316 Stainless Steel
    • Aluminum, Epoxy Coated

    Environmental Protection

    • IP66
    • NEMA 4X / IP66

    Input

    • 3-Wire RTD

    Instrument Connection

    • 1/2” NPT
    • M16 x 2P

    Mounting

    • 2” U-Bolt Fasteners for Pipe Mounting
    • 316 Stainless Steel Mounting Kit, for Wall or 2” Pipe
    • 316 Stainless Steel Wall Mounting Bracket

    Output

    • 4-20 mA (Re-transmission)

    Response Time

    • Typically 20 to 75 milliseconds

    Supply Voltage

    • 18-28 Vdc

    Temperature Range

    • -40° to 60° C (-40° to 140° F)
