Description
The WELD-PAD enables the measurement of temperatures on plain or contoured surfaces.

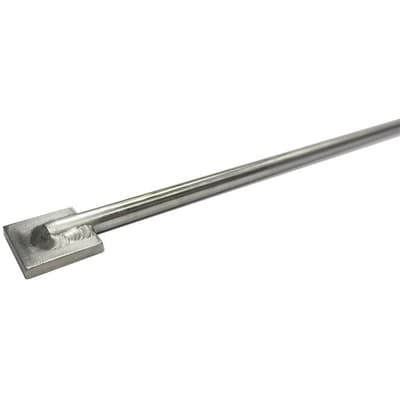

The WELD-PAD sensor hot end is a contoured weld-pad attached to a mineral-insulated cable (sheathed cable). It consists of a metal outer sheath, which contains the insulated internal leads, compressed within a high-density ceramic composition. The internal leads are made from thermo material. The material of the outer sheath can be selected to match the application. At one end of the sheathed cable, the internal leads are welded together to form an insulated (ungrounded) or non-insulated (grounded) measuring point.
Features- Application ranges from 0 ... 1,260 °C (32 ... 2,300 °F).
- Flexible sheathed cable, mineral-insulated internal leads.
- High mechanical strength, shock-resistant.
- Explosion-protected versions.
Specifications
Specifications
Environmental Protection
- IP65
- IP66
Certifications & Approvals
- PESO
- KOSHA
- NEPSI
- INMETRO
- EAC
- CSA
- FM
- IECEx
- CE
Connection Head Material
- Plastic
- Stainless Steel
- Aluminum
Material of Construction
- WELD-PAD: Hastelloy X, Inconel 600, Stainless Steel 1.4841, 1.4749, 1.4401, Haynes HR 160®, Pyrosil D
- Sheath: Inconel 600, Steel
Sensor Type
- Type K, J, N, E
Range
- 0 to 1,260° C (32 to 2,300° F)
