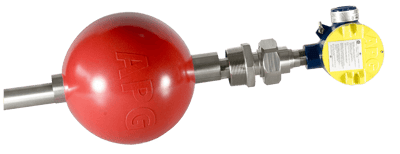

RPM Series Resistive Chain Level Sensor

Brand: Automation Products Group - APG
The RPM Level Sensor is designed for use in the chemical, oil, shipping, food processing, waste treatment, and many other industries. Each RPM is manufactured to the users specifications making it fit to work precisely according to the application requirements.
Features
  • Continuous level indication
  • Rugged and highly reliable
  • Anti-stick float design
  • Resistive chain or loop-powered 4-20 mA output
  • Hazardous Area approvals - Explosion-Proof/Intrinsically-Safe
The RPM Level Sensor is designed for use in the chemical, oil, shipping, food processing, waste treatment, and many other industries. Each RPM is manufactured to the users specifications making it fit to work precisely according to the application requirements.
Features
  • Continuous level indication
  • Rugged and highly reliable
  • Anti-stick float design
  • Resistive chain or loop-powered 4-20 mA output
  • Hazardous Area approvals - Explosion-Proof/Intrinsically-Safe
Close

Displaying prices & availability for Ohio, United States in USD. Change location or currency.

Models matching criteria: 2
RPM-084-A-F-IS-001-02-00
APG RPM Series Level Sensor, 84", Polyurethane Float, 4-20 mA, Strain Relief w/Plug, 2" NPT view more
  • RPM: Explosion Proof Continuous Float Level Transmitter (Resistive)
  • 084: Probe Length: 84”
  • A: APG Label
  • F: Polyurethane float with designated logo (0.44 SG, 8” OD)
  • IS: 4-20 mA with IS and EX approval (Class 1, Div. 1)
  • 011-0: T & B Strain Relief with Plug
  • 2: 1/2” resolution, top deadband (S1) - 8 inches, bottom deadband (S2) - 5 inches

*** Crating Fees May Apply **
Add-Ons Stainless Steel Tag - 1 Line, Stainless Steel Tag - 2 Lines, Stainless Steel Tag - 3 to 5 Lines
4 - 6 weeks
$2,352.40 USD
Non-Cancellable / Non-Refundable
RPM-084-A-F-AIS-011-02-00
APG RPM Series Level Sensor, 84", Polyurethane Float, 8" OD, Strain Relief w/plug, 4-20 mA, CSA/ATEX view more
  • RPM: Explosion Proof Continuous Float Level Transmitter (Resistive)
  • 084: Length in Inches
  • A: APG Logo
  • F: Polyurethane float with designated logo (0.44 SG, 8” OD)
  • AIS: 4-20 mA with ATEX approval (Ex. ll.1G EX ia IIB T3 & Class 1, Div. 1 ia) CSA, IS, Class 1 Div. 1
  • 011: Custom Wiring T and B 2531 Strain Relief w/Plug
  • 02: 1/2” Resolution
    • top deadband (S1): 8 inches
    • bottom deadband (S2): 6 inches
  • 00: Mount Option - None
    • [/li]
*** Crating Fees May Apply ***
Add-Ons Stainless Steel Tag - 1 Line, Stainless Steel Tag - 2 Lines, Stainless Steel Tag - 3 to 5 Lines
4 - 5 weeks
$2,360.13 USD
Non-Cancellable / Non-Refundable
Close
Close

Specifications

Brand

Approvals & Certifications

  • ATEX Ntrinsically Safe, Ex II 1 G Ex ia IIB T3 Ga
  • CSA Explosion-proof, Class I, Zone 1, Ex d, IIB T3 & Class I, Zone 1, AEx d, IIB T3
  • CSA Intrinsically Safe, Class I, Div. 1 & 2, Groups C, D

Cable Entry

  • 3/4" NPT

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65

Materials of Construction

  • Float Material: 316L Stainless Steel
  • Float Material: Polyurethane

Maximum System Pressure

  • psi: 72.52 (kPa: 500, bar: 5)

Mounting

  • Flange Mount
  • Pluggable Screw Elements

Output

  • 20-4 mA
  • 4-20 mA

Resolution

  • High: 7 mm (0.25")
  • Standard: 13 mm (0.5")

Sensor, Probe Style

  • Float

Stem Length

  • 48" to 240" (122 cm to 640 cm)

Stem Material

  • 316L Stainless Steel
