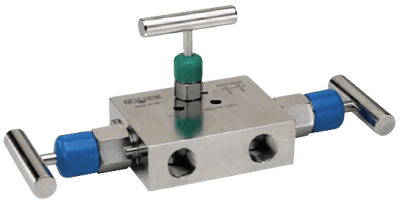

3510 Series Manifold Valve

Brand: Noshok, Inc
Request Information
Features
  • Designed for use with differential pressure transmitters incorporating two isolation valves and an equalizing valve in differential pressure measurement
  • Available in block, single flange, or double flange connection for remote or direct installation
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
  • Soft-Seat design has 6,000 psi pressure rating at 200° F
  • Features a replaceable Delrin® seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning
  • Blow-out proof stem provides a secondary stem seal in the full open position
  • All stems are 316 stainless steel
  • All stem threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
  • Slotted spring pin to prevent accidental loosening
  • Vinyl dust caps for bonnets and stems
  • Non-rotating stem tip standard on isolation valves
Options
  • Panel Mountings
  • O-Ring Materials
  • Handles
  • Packings
  • Regulating Stem
  • Stem Tips
Features
  • Designed for use with differential pressure transmitters incorporating two isolation valves and an equalizing valve in differential pressure measurement
  • Available in block, single flange, or double flange connection for remote or direct installation
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
  • Soft-Seat design has 6,000 psi pressure rating at 200° F
  • Features a replaceable Delrin® seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning
  • Blow-out proof stem provides a secondary stem seal in the full open position
  • All stems are 316 stainless steel
  • All stem threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
  • Slotted spring pin to prevent accidental loosening
  • Vinyl dust caps for bonnets and stems
  • Non-rotating stem tip standard on isolation valves
Options
  • Panel Mountings
  • O-Ring Materials
  • Handles
  • Packings
  • Regulating Stem
  • Stem Tips
Close
Close

Specifications

Brand

Enclosure, Body Material

  • Electro-Polished 316 Stainless Steel
  • Zinc-Nickel-Plated Steel

Flange Material

  • 316L Stainless Steel
  • Steel

Flow Capacity

  • 3.0 Cv

Handle Assembly Material

  • 1-3/8”, 1-3/4” Phenolic

Mounting

  • Panel Mount

NPT Inlet

  • 1/2” NPT Female

NPT Outlet

  • 1/2” NPT Female

O-Ring Material

  • Ethylene Propylene (EPR)
  • FFKM (Kalrez 3018 or Equivalent)
  • FKM
  • NBR

Options

  • Handle
  • Packings
  • Regulating Stem & Stem Tips

Orifice Size

  • 0.375”

Pressure Rating

  • psi: 6,000 (kPa: 41,370, bar: 413.7) at 93° C (200° F)

Seat / Seal Material

  • 304L Stainless Steel
  • PCTFE
  • PEEK
  • Steel

Stem Material

  • 316 Stainless Steel

Valves

  • Three
