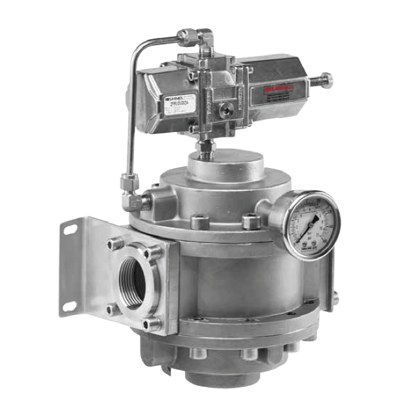

3575 Series Pressure Regulator

Brand: Midland-ACS
A 316L stainless steel unit for pressure regulation of compressed air and gases for the actuation industries.
Features
  • Specifically designed for severe environments
  • Self-Relieving
  • Ambient Temperature Range -20° to 80° C (-4° to 176° F)
  • 316L Stainless Steel Construction
  • Mounting Brackets are supplied. Fitted as Standard
  • Gauge Fitted as Standard
  • Regulated Pressure Range from 7.25 to 174 psi (50 to 1,200 kPa, 0.50 to 12.0 bar) Depending on Model Selection
  • Large Flow Paths (up to 45 Cv)
A 316L stainless steel unit for pressure regulation of compressed air and gases for the actuation industries.
Features
  • Specifically designed for severe environments
  • Self-Relieving
  • Ambient Temperature Range -20° to 80° C (-4° to 176° F)
  • 316L Stainless Steel Construction
  • Mounting Brackets are supplied. Fitted as Standard
  • Gauge Fitted as Standard
  • Regulated Pressure Range from 7.25 to 174 psi (50 to 1,200 kPa, 0.50 to 12.0 bar) Depending on Model Selection
  • Large Flow Paths (up to 45 Cv)

Specifications

Ambient Temperature Range

  • -20° to 80° C (-4° to 176° F)

Enclosure, Body Material

  • 316L Stainless Steel
  • Nylon (Auto-Drain Version Float)
  • Polyoxymethylene (Auto-Drain Version Float)
  • Rubber (Auto-Drain Version Float)

Flow Capacity

  • 1,590 scfm (2700 m³/hour)
  • 38 Cv
  • 45 Cv

Gauge Connection

  • 1/8” NPT (Fitted with Gauge)

Media

  • Air
  • Inert Gas
  • Sour Natural Gas

NACE & NIST

  • NACE

NPT Connection

  • 1-1/2” NPT Female
  • 2” NPT Female

Pressure Range

  • bar: 0.50 to 12
  • kPa: 50 to 1,200
  • psi: 7.2 to 174

Relief

  • Self-Relieving

Seat / Seal Material

  • Nitrile

Supply Pressure - Maximum

  • bar: 20
  • kPa: 2,000
  • psi: 290

Supply Pressure Effect

  • At 10 bar (145 psi) Supply Pressure, 6 bar (87 psi) secondary Pressure, 1 bar (14.5 psi) Pressure Drop

Vent

  • 1/2” NPT (Fitted with Breather)
