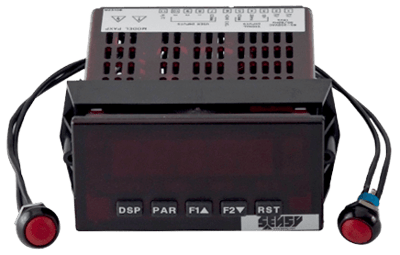

DISP-BOYDP/CRANE-BOYDP Load Limitation Electronics

Brand: Sensy - Sensors & Synergy S.A.
Request Information
Electronics ensuring the individual limitation of loads lifted by 2 hoisting systems and also the limitation of a function of these loads (sum, difference, multiplication, ratio).
Features
  • Easy and intuitive calibration
  • Display of hoisted loads and input signals
  • Internal monitoring system of the integrity of the load cells and the load limitation electronic (positive safety)
  • TEST button on front cover
  • Options:
    • 4(0) to 20 mA or 0-10 V Analog output
    • RS232, RS485, USB or fieldbus capabilities
    • NEMA 4X / IP 65
    • Rail DIN adaptor
    • Power supply: 48 Vac (only for 85-230 Vac version)
Electronics ensuring the individual limitation of loads lifted by 2 hoisting systems and also the limitation of a function of these loads (sum, difference, multiplication, ratio).
Features
  • Easy and intuitive calibration
  • Display of hoisted loads and input signals
  • Internal monitoring system of the integrity of the load cells and the load limitation electronic (positive safety)
  • TEST button on front cover
  • Options:
    • 4(0) to 20 mA or 0-10 V Analog output
    • RS232, RS485, USB or fieldbus capabilities
    • NEMA 4X / IP 65
    • Rail DIN adaptor
    • Power supply: 48 Vac (only for 85-230 Vac version)
Close
Close

Specifications

Brand

Accuracy

  • 0.1 % of Full Scale

Applications

  • Load Limitation on Overhead Cranes, Container Cranes & Gantry Cranes

Approvals & Certifications

  • CE

Communication

  • FOUNDATION Fieldbus
  • RS-232
  • RS-485
  • USB

Display

  • 5-Digits (14.2 mm)

Environmental Protection

  • IP54
  • IP65 (Splashproof Cover)
  • NEMA 4X

Input

  • 4-20 mA

Mounting

  • DIN Rail

Output

  • 0-10 V - Analog

Power Supply

  • 18-36 Vdc (13 W)
  • 24 Vac (16 VA)
  • 85-250 Vac (21 VA, 15 VA)

Relay Output

  • 3 A (250 Vac or 30 Vdc)
  • 3 Relays

Sensor Excitation

  • 18 Vdc ± 20 % (70 mA)

Service Temperature

  • 0° to 50° C (32° to 122° F)

Storage Temperature

  • -40° to 60° C (-40° to 140° F)
