Description

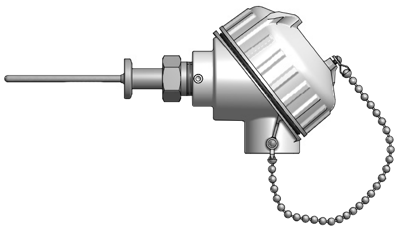

Miniature CIP sanitary RTD temperature sensors are provided with 16AMP sanitary caps to fit 1/2" and 3/4" tube size sanitary fittings.
They are used in pharmaceutical, chemical, biotech, R & D laboratory, and food process applications.
The sanitary caps are welded to the sheath, all made of 316 stainless steel, and then ground and polished to a finish that meets or exceeds 15µin Ra. 3.1 surface finish test reports that list actual finish measurements are available for an additional charge.
The process contact surfaces are free of pits, crevices, and pockets thus preventing corrosion and bacteria growth. All leads are fluoropolymer insulated to further provide moisture and chemical resistance.
The listed sheath lengths provide assurance that the sensing element is properly placed in the flowing medium when used with typical sanitary tees and tube fittings, and the small sheath diameter provides fast temperature response times.
Configure
Specifications
Specifications
Brand
Certifications & Approvals
- 3-A
Element Connection
- 3-Wire
- 4-Wire
Sanitary Cap Size
- 1/2”, 3/16”
Head Material
- 316 Stainless Steel
- White Polypropylene
- Aluminum
Lead Thermination
- Leads not stripped
- 2” split leads, 1/4” stripped or w/ spade lug
- Standard plug
- Miniature plug
