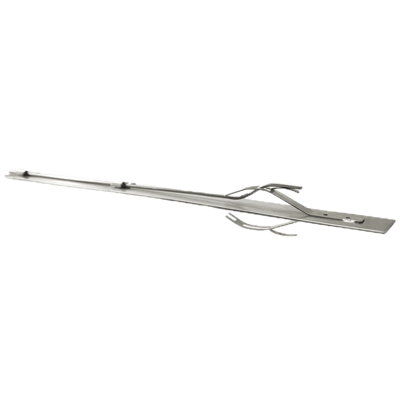

Multipoint Thermocouple in Band Design - TC95

Brand: WIKA Alexander Wiegand SE & Co. KG
Multipoint thermometers are often used for measuring temperature profiles in reactors or fuel depots or for the detection of the so-called "hotspots".
The so-called multipoint thermometer in band design is a common construction. In this design, several, if required, exchangeable thermocouples or resistance thermometers are linearly arranged on a guide band.

To achieve rapid response times, the individual measuring points are pressed by pressure springs to the internal side of the thermowell which forms a single entity with the thermometer or which can ideally be an already existing component of the reactor. Connection terminals or temperature transmitters are placed in the connection housing which is either a component of the multipoint thermometer or can be mounted separately, e.g. on a wall or pipeline.
Features
  • Versions to customer specification.
  • Various process connections.
  • Exchangeable measuring inserts.
  • Application in conjunction with a thermowell.
  • Explosion-protected versions Ex i, Ex n and NAMUR NE24 .
Multipoint thermometers are often used for measuring temperature profiles in reactors or fuel depots or for the detection of the so-called "hotspots".
The so-called multipoint thermometer in band design is a common construction. In this design, several, if required, exchangeable thermocouples or resistance thermometers are linearly arranged on a guide band.

To achieve rapid response times, the individual measuring points are pressed by pressure springs to the internal side of the thermowell which forms a single entity with the thermometer or which can ideally be an already existing component of the reactor. Connection terminals or temperature transmitters are placed in the connection housing which is either a component of the multipoint thermometer or can be mounted separately, e.g. on a wall or pipeline.
Features
  • Versions to customer specification.
  • Various process connections.
  • Exchangeable measuring inserts.
  • Application in conjunction with a thermowell.
  • Explosion-protected versions Ex i, Ex n and NAMUR NE24 .

Specifications

Versions

  • Model Tx95-A-B: with thermowell
  • Model Tx95-B-B: without thermowell

Materials

  • 316L Stainless Steel or 1.4571
  • Special Alloys or carbon Steels as thermowell material

Process Connection

  • Flanges of all major national and international Standards
  • Threaded Connections with Male or Female threads to customer Specifications
  • High Pressure Connections, such as sealing cone or lens-Type sealing ring to customer specifications

Sensors TC95-x-B

  • Thermocouples as sheathed cable installation
  • Single, double Element
  • Measuring point ungrounded or grounded
  • For details, see data sheet TE 65.40 of the cable thermocouple model TC40

Sensors TR95-x-B

  • PT100 ClassA or B as sheathed cable installation
  • Single, double Sensor
  • For details, see data sheet TE 60.40 of the cable resistance thermometer model TR40

Shipping

  • Model Tx95-A-B with thermowell: in wooden box with lengths of up to 12 metres
  • Model Tx95-B-x without thermowell: in wooden box, depending on Design straight or rolled

Applications

  • Chemical and petrochemical industry
  • Measurement of temperature layerings or hotspots in reactors
  • Fuel depots
