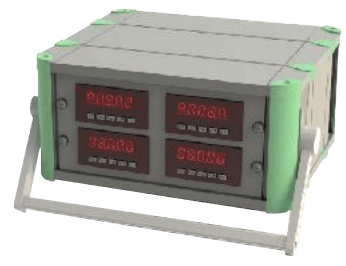

INDI-12390 Digital Panel Meter

Brand: Sensy - Sensors & Synergy S.A.
Request Information
Standard reference indicator especially designed to display the 4 signals generated by the 3115F-12390 load-cell. These load-cell is designed for the control of concrete testing machines following EN12390-4 and DIN 51302-2.
Features
  • Conform to the norms EN12390-4 and DIN51302-2
  • 4 independent displays
  • Resolution: 5-Digit
  • Robust industrial housing
  • Options:
    • Digital ouput: RS-232, RS485 or USB
    • Analog output: 0-10V or 4 to 20mA
Standard reference indicator especially designed to display the 4 signals generated by the 3115F-12390 load-cell. These load-cell is designed for the control of concrete testing machines following EN12390-4 and DIN 51302-2.
Features
  • Conform to the norms EN12390-4 and DIN51302-2
  • 4 independent displays
  • Resolution: 5-Digit
  • Robust industrial housing
  • Options:
    • Digital ouput: RS-232, RS485 or USB
    • Analog output: 0-10V or 4 to 20mA
Close

Specifications

Brand

Approvals & Certifications

  • CE

Communication

  • 16-bit
  • RS-232
  • RS-485
  • USB

Consumption

  • 60 VA

Display

  • 4 x 5-Digits (14.2 mm)

Electrical Connectors

  • Amphenol MS3102 Female Connector

Environmental Protection

  • IP54

Input

  • 24 mV (4 Inputs)

Output

  • 0-10 V
  • 4-20 mA

Power Supply

  • 85-250 Vac

Sensor Excitation

  • 10 Vdc

Service Temperature

  • 0° to 50° C (32° to 122° F)

Storage Temperature

  • -40° to 60° C (-40° to 140° F)
