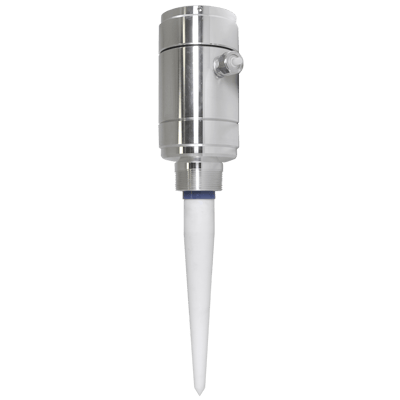

ABM Radar, Explosion-Proof CID1, Smart Self-Calibrating Sensor

Brand: ABM Sensor Inc
Request Information
  • cFMus Explosion-Proof Approved for both Canada & USA
    • Class I, Div. 1, Groups B, C, D
    • Class II / III, Division 1, Groups E, F, G
    • Ingress Protection: NEMA 6 (IP68)
  • CE Approved: FCC Part 15
    • Low Power Communication Device
  • Outputs and Communication Protocols
    • 4-20mA Output with HART Communication, 2-Wire Loop, 12-30 VDC
    • 4-20mA Output with Modbus RTU Communication, 3 & 4 Wire, 12-30 VDC, 115 / 230 VAC (50/60 Hz)
  • Radar Range: 17 to 340 Feet (5 to 103 Meters)
Features
"Smart" Self-Calibrating - Constantly adjusting to process
  • When dealing with challenging environments such as vapour, temperature variations, extreme temperatures, extreme dust, wind, foam, ice, acoustic noise, etc., radar should be your choice.
  • The ABM radar is a one-echo sensor that automatically adjusts their transmitted energy and received echoes to get the same amplitude of wanted echoes regardless of the distance to the radar, which allows a very narrow radiation beam and very short blanking.
Works on both Liquids and Solids
  • Fast Response
  • High Resolution
  • No False Echoes
  • High-Temp Models
  • Various Mountings
  • cFMus Explosion-Proof Approved for both Canada & USA
    • Class I, Div. 1, Groups B, C, D
    • Class II / III, Division 1, Groups E, F, G
    • Ingress Protection: NEMA 6 (IP68)
  • CE Approved: FCC Part 15
    • Low Power Communication Device
  • Outputs and Communication Protocols
    • 4-20mA Output with HART Communication, 2-Wire Loop, 12-30 VDC
    • 4-20mA Output with Modbus RTU Communication, 3 & 4 Wire, 12-30 VDC, 115 / 230 VAC (50/60 Hz)
  • Radar Range: 17 to 340 Feet (5 to 103 Meters)
Features
"Smart" Self-Calibrating - Constantly adjusting to process
  • When dealing with challenging environments such as vapour, temperature variations, extreme temperatures, extreme dust, wind, foam, ice, acoustic noise, etc., radar should be your choice.
  • The ABM radar is a one-echo sensor that automatically adjusts their transmitted energy and received echoes to get the same amplitude of wanted echoes regardless of the distance to the radar, which allows a very narrow radiation beam and very short blanking.
Works on both Liquids and Solids
  • Fast Response
  • High Resolution
  • No False Echoes
  • High-Temp Models
  • Various Mountings
Close
Close

Specifications

Brand

Explosion Proof

  • cFMus Approved
  • Class I, Division 1, Groups B, C, D
  • Class II / III, Division 1, Groups E, F, G

Environmental Protection

  • NEMA 6 (IP68)

Communications

  • HART rev 7
  • Modbus RTU RS232
  • Modbus RTU RS485

Radar Range

  • Up to 340 feet (103 metres)

Supply Voltage

  • 16-30 VDC (2 Wire - Loop Powered)
  • 10-30 VDC (3 or 4 Wire)

Radar Frequency

  • 5.8 GHz
  • 6.3 GHz

Body Material

  • Aluminum
  • 316 Stainless Steel

Antenna Material

  • Teflon (ATE)
  • 6" inch Horn Standard
  • 6" inch Horn - High Temp
  • 2" inch Tri-Clamp

Conduit Entry

  • 1/2" inch FNPT

Mounting Type

  • Threaded
  • Flanged
  • Swivel
Close

Applications

Works on both Solids or Liquids

  • Oil, Water Separation, Treaters, Free Water Knockout

  • Oil or Chemical Storage Tanks

  • Various Tanks on Drilling Rigs

  • Grain Bins

  • Aggregate Hoppers

  • Water Tanks or open Holding Tanks

  • Waste Water pits
