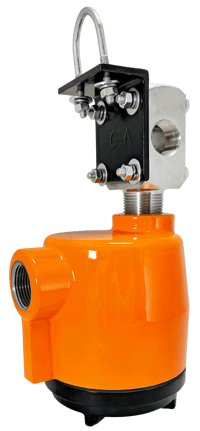

Kayden CLASSIC 830 Spare Sensor, In-Line Threaded, 3/4" FNPT, P42 Series

Brand: Kayden Instruments
Does not ship to OH, United States
  • Replacement Sensor for Kayden CLASSIC 830 Series
  • Process Connections
    • 3/4" Female NPT
  • Sensor Assembly Body Length
    • 3.5" (8.8 cm)
  • Sensor Mounting Orientation
    • Horizontal or Vertical
  • Adjustable Set Point Range
    • 0.015 to 20,000 cc/sec (at 1 atm)
  • Operating Pressure (Maximum)
    • 3480 psi, 24,000, kPa, 240 bar
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Bleed Port
    • 1/4" Threaded
  • Injection Tube
    • Optional
    • 1/4" I.D. 316 Stainless Steel
    • 1/8" I.D. 316 Stainless Steel
  • Option
    • Mounting Bracket Kit
  • Wetted Materials
    • 316/316L Stainless Steel, Nickel Brazed
  • Sensor Connection
    • Molex 8-Pin
  • Approvals (with 830 Switch)
    • UL, CSA, Single Seal, NACE
  • Replacement Sensor for Kayden CLASSIC 830 Series
  • Process Connections
    • 3/4" Female NPT
  • Sensor Assembly Body Length
    • 3.5" (8.8 cm)
  • Sensor Mounting Orientation
    • Horizontal or Vertical
  • Adjustable Set Point Range
    • 0.015 to 20,000 cc/sec (at 1 atm)
  • Operating Pressure (Maximum)
    • 3480 psi, 24,000, kPa, 240 bar
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Bleed Port
    • 1/4" Threaded
  • Injection Tube
    • Optional
    • 1/4" I.D. 316 Stainless Steel
    • 1/8" I.D. 316 Stainless Steel
  • Option
    • Mounting Bracket Kit
  • Wetted Materials
    • 316/316L Stainless Steel, Nickel Brazed
  • Sensor Connection
    • Molex 8-Pin
  • Approvals (with 830 Switch)
    • UL, CSA, Single Seal, NACE
Close

Displaying prices & availability for Ohio, United States in USD. Change location or currency.

Models matching criteria: 1
P42-RA3D-0035-AH0AM
KAYDEN CLASSIC 830 Series Thermal Flow, Level, Interface Sensor, 3/4"NPT, 3.5" Body, 1/4" Bleed Port view more
  • Process Connections: 3/4" FNPT
  • Sensor Assembly Body Length: 3.5", 8.8 cm
  • Sensor Mounting Orientation: Horizontal
  • Temperature Range - Sensor
    • -55° C to 200° C
    • -67° F to 392° F
  • Bleed Port: 1/4" Threaded
  • Wetted Materials
    • Standard: 316 Stainless Steel
  • Sensor Connection: Molex - 8 Pin
In Stock 3 - 5 weeks
$1,272.45 USD
Does not ship to OH, United States
Non-Cancellable / Non-Refundable
Close
Close

Specifications

Brand

Approvals & Certifications

  • CRN - Canadian Registration Number - the Kayden Classic P42 Sensor (830 Series) does not have a CRN Number

Bleed Port

  • 1/4” Threaded

Flange Material

  • 316, 316L Stainless Steel

Injection Tubes - 3/4” Male NPT x 1/4” Female NPT

  • 1/8” I.D., 316 Stainless Steel
  • 1/4” I.D., 316 Stainless Steel
  • Not Required

NPT Connection

  • 3/4” NPT Female

Operating Pressure - Sensor

  • Threaded Style: Max.

Operating Temperature - Sensor

  • -45° to 200° C (-50° to 392° F)

Response Time

  • Approximately 0.5 to 30 seconds

Sensor Assembly Body Lengths

  • 3.5” (8.8 cm)

Sensor Orientation

  • Horizontal
  • Vertical

Sensor, Probe Connection Type

  • Molex 8-Pin

Sensor, Probe Style

  • InLine

Wetted Materials

  • 316 Stainless Steel c/w Nickel-Braze
