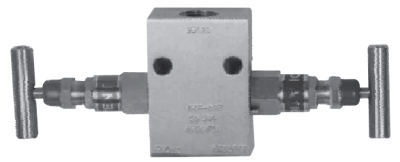

Model 387FM 2-Valve Manifold

Brand: International Metal Engineering (IME)
Request Information
The Model 387FM 2 valve manifold has been designed to be remotely mounted when used with gauge pressure transmitters, pressure switches, absolute pressure transmitters or pressure gauges. Its flat style and directly opposed bonnets provide isolating and calibrating functions in a compact unit. This design is suitable for applications up to psi: 6,000 (kPa: 41,369, bar: 420)
The Model 387FM 2 valve manifold has been designed to be remotely mounted when used with gauge pressure transmitters, pressure switches, absolute pressure transmitters or pressure gauges. Its flat style and directly opposed bonnets provide isolating and calibrating functions in a compact unit. This design is suitable for applications up to psi: 6,000 (kPa: 41,369, bar: 420)
Close
Close

Specifications

Brand

Enclosure Finish

  • Natural for Stainless Steel
  • Zinc-Plated for Carbon Steel

Enclosure, Body Material

  • 316 Stainless Steel
  • Carbon Steel
  • Hastelloy C
  • Monel 400

Gland Packing Material

  • Graphoil (Temperatures Above 180° C (356° F))
  • PTFE

Mounting

  • Flat Mounting
  • Panel Mount

NPT Inlet

  • 1/2” NPT Female
  • 1/4” NPT Female
  • 3/8” NPT Female

NPT Outlet

  • 1/2” NPT Female
  • 1/4” NPT Female
  • 3/8” NPT Female

Packing Material

  • Grafoil
  • Teflon

Pressure Range

  • psi: 0 to 6,000 (kPa: 0 to 41,370, bar: 0 to 413.7)

Proof Pressure

  • Test Pressure - psi: 580.2 (kPa: 4,000, bar: 40) at 25° C (77° F) Room Temperature for Pneumatic (Seat)
  • Test Pressure - psi: 6,019 (kPa: 41,500, bar: 415) at 25° C (77° F) Room Temperature for Hydrostatic (Seat)
  • Test Pressure - psi: 8,992 (kPa: 62,000, bar: 620) at 25° C (77° F) Room Temperature for Hydrostatic (Body)

Valves

  • Two
