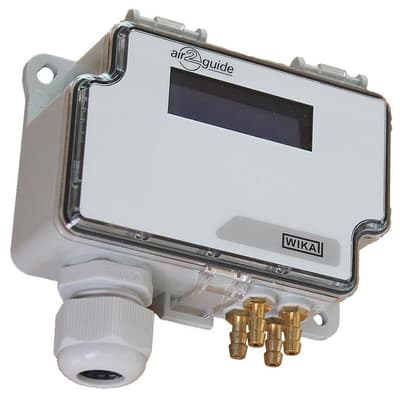

Dual Differential Pressure Sensor - A2G-52

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
The model A2G-52 dual differential pressure sensor combines two differential pressure sensors in one instrument, so that pressure can be measured from two different control points.
Features
  • Simple mounting.
  • Two differential pressure sensors in one instrument.
  • Two inputs for temperature sensors or Analog signal.
  • With Modbus® interface.
  • Two-line LC display for the direct reading of both pressure.
The model A2G-52 dual differential pressure sensor combines two differential pressure sensors in one instrument, so that pressure can be measured from two different control points.
Features
  • Simple mounting.
  • Two differential pressure sensors in one instrument.
  • Two inputs for temperature sensors or Analog signal.
  • With Modbus® interface.
  • Two-line LC display for the direct reading of both pressure.
Close

Specifications

Brand

Measuring Range

  • -250 to 7,500 Pa

Unit of Measure

  • Pa, mbar, inWC, mmWC, psi

Measuring Element

  • Piezo measuring Cell

Process Connection

  • Connecting Nozzle (Copper Alloy), Lower Mount, for Hoses with inner diameter 4 mm

Case Material

  • Plastic (ABS)
  • Cover: Polycarbonate (PC)

Environmental Protection

  • IP54

Certifications & Approvals

  • CE
  • EAC
  • GOST
  • MTSCHS
Close

Applications

  • For monitoring air, non-inflammable and non-aggressive gases
  • Fan, blower and filter monitoring
  • Pressure and flow monitoring
  • Monitoring and control of valves and air shutters
  • Pressure monitoring in clean rooms
