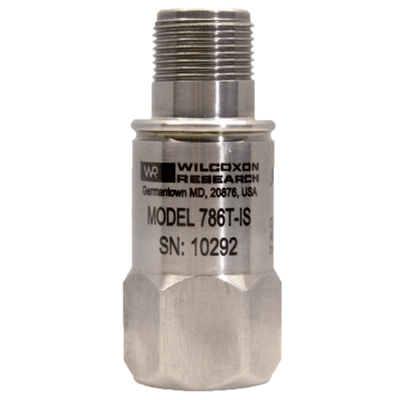

Images are representations only.
Description
Features:
- Hazardous area certified - Intrinsically-Safe
- Measures both acceleration and temperature
- Rugged design
- Corrosion resistant
- Hermetically sealed
- Case isolated
- ESD-protected
- Reverse wiring protection
Specifications
Specifications
Approvals & Certifications
- ATEX Ex Ga Ex ia IIC T4
- CE
- CSA (C,US) Class I, Div. 1, Grade A, B, C, D, Class II, Div. 1, Groups E, F, G, Class III, Div. 1, Class I, Zone 0, Ex ia IIC T4, Class I, Zone 0, Aex Ia IIC T4
- IEC, IECEx
Circuit Protection
- ESD Protection
- Reverse Wiring Protection
Electrical Connectors
- Cable (J9T3A)
- Mating Connector: R6 G
- Output Connector: 3-Pin, MIL-C-5015 Style
Element
- Sensing Element Design: PZT Ceramic, Shear
Enclosure, Body Material
- 316L Stainless Steel
Environmental Protection
- Corrosion-Proof
- Hazardous Area
- Intrinsically Safe
Frequency
- Frequency Response (± 10 %): 1 to 7,000 Hz
- Frequency Response (± 3 dB): 0.5 to 12,000 Hz
- Frequency Response (± 5 %): 3 to 5,000 Hz
- Resonance Frequency: 30 kHz
Measuring Range
- Sensor: 2° to 120° C (36° to 248° F)
Mounting
- 1/4-28 UNF Tapped Hole
Noise
- Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 700 µg
- Electrical Noise, Equivalent G (Spectral: 10 Hz): 10 µg/√Hz
- Electrical Noise, Equivalent G (Spectral: 100, 1,000 Hz): 5.0 µg/√Hz
Non-Linearity
- Amplitude Non-Linearity: 1 %
Output Impedence
- Maximum 100 Ω
Power Requirement
- 18-28 Vdc
- Current Regulating Diode: 2-10 mA
Range
- Acceleration Range: 60 G Peak
Seal Type
- Hermetic
Sensitivity
- Base Strain Sensitivity, Max.
- Electromagnetic Sensitivity, Equivalent G, Max.
- Sensitivity, ± 5 %, 25° C (77° F): 100 mV/g
- Temperature Sensor (Output Sensitivity): 10 mV/°C
- Transverse Sensitivity: Max. 5 % of axial
Shock
- Shock Limit: 5,000 G Peak
Temperature Range
- -50° to 120° C (-58° to 248° F)
Vibration
- Vibration Limit: 500 G Peak
Voltage
- Bias Output Voltage, Nominal: 12 Vdc
