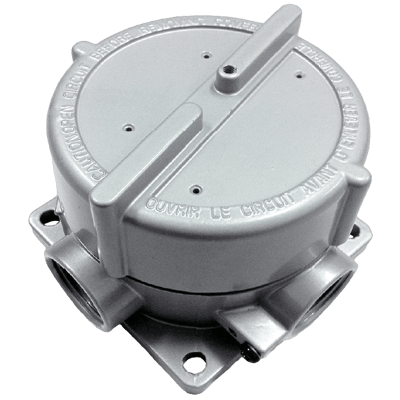

7080 Junction Box

Brand: International Metal Engineering (IME)
The IME Model 7080 Series Junction Box is designed to accommodate circuit boards and devices having a maximum diameter of 2.6"(66 mm). Specifically designed for Explosion-Proof applications, the housing is available in either a die-cast Copper-Free Aluminum (NEMA 4X) version or investment casted SS316 to withstand applications where aggressive atmospheres prevail.

The housing can be ordered with either a tempered glass cover or solid cover. There is a wide choice of conduit and instrument entries. Can come complete with terminal block if desired.
The IME Model 7080 Series Junction Box is designed to accommodate circuit boards and devices having a maximum diameter of 2.6"(66 mm). Specifically designed for Explosion-Proof applications, the housing is available in either a die-cast Copper-Free Aluminum (NEMA 4X) version or investment casted SS316 to withstand applications where aggressive atmospheres prevail.

The housing can be ordered with either a tempered glass cover or solid cover. There is a wide choice of conduit and instrument entries. Can come complete with terminal block if desired.
Close

Displaying prices & availability for Ohio, United States in USD. Change location or currency.

Models matching criteria: 4
7080AE-03-05-T205
IME Model 7080 Junction Box, Explosion-Proof, Blind, Aluminum, 3 x 1/2" NPT, FM/CSA, 6/32 Tapped view more
  • Conduit Connection: 3 x 1/2" NPT
  • Housing Material: Copper-Free Aluminum
  • Housing Style: Blind
  • Environmental Rating: NEMA 4, IP66, IP68
  • FM/CSA Explosion Proof
    • Class I, Division I; Groups B,C,D
    • Class II, III, Division I; Groups E,F,G
  • No Terminal Strip
  • No Assembly
  • 2 x 6/32 tapped holes
23 In Stock
$177.41 USD
7080AE-03-07-T205
IME Model 7080 Junction Box, Explosion-Proof, Blind, Aluminum, 3/4" NPT, 3 Port, FM/CSA, 6/32 Tapped view more
  • Conduit Connection: 3 x 3/4" NPT
  • Housing Material: Copper-Free Aluminum
  • Housing Style: Blind
  • Environmental Rating: NEMA 4, IP66, IP68
  • FM/CSA Explosion Proof
    • Class I, Division I; Groups B,C,D
    • Class II, III, Division I; Groups E,F,G
  • No Terminal Strip
  • No Assembly
  • 2 x 6/32 Tapped Holes
11 In Stock
$177.41 USD
7080AE-03-07-22-A
IME Model 7080 Junction Box, `Push` Terminal Strip, SPDT, Blind, Aluminum, 3/4" NPT, FM/CSA, Install view more
  • Mounted Terminal Block
    • Weidmuller AKZ 1.5, 4-Pole Terminal 'Push' Block, SPDT
  • Junction Box
    • Conduit Connection: 3 x 3/4" NPT c/w (1) Stainless Steel ATEX/FM/CSA 3/4" Plug
    • Housing Material: Copper-Free Aluminum, Grey Epoxy
    • Housing Style: Blind
    • Environmental Rating: NEMA 4X, IP66
    • FM/CSA Explosion Proof
      • Class I, Division I; Groups B,C,D
      • Class II, III, Division I; Groups E,F,G
  • Installation on Switch Included
1 - 6 weeks
$397.04 USD
7080AE-03-05-95-A
IME Model 7080 Junction Box, Screw` Terminal Strip, DPDT, Blind, Aluminum, 3x1/2"NPT, FM/CSA, Instal view more
  • Mounted Terminal Block
    • Weidmuller AKZ 1.5, 4-Pole Terminal 'Screw' Block, DPDT
  • Junction Box
    • Conduit Connection: 3 x 1/2" NPT
    • Housing Material: Copper-Free Aluminum, Grey Epoxy
    • Housing Style: Blind
    • Environmental Rating: NEMA 4X, IP66
    • FM/CSA Explosion Proof
      • Class I, Division I; Groups B,C,D
      • Class II, III, Division I; Groups E,F,G
  • Installation on Switch Included
1 - 6 weeks
$397.75 USD
Close
Close

Specifications

Brand

Approvals & Certifications

  • ATEX
  • CSA
  • FM
  • IECEx

Enclosure Finish

  • Epoxy Coated

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum

Environmental Protection

  • IP66
  • NEMA 4X

O-Ring Material

  • Buna-N

Thread

  • 1/2” NPT
  • 3/4” NPT
  • M20 x 1.5
