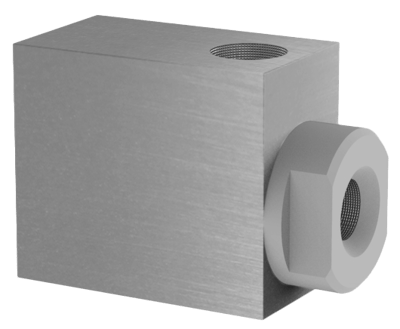

S & AS Pneumatic Shuttle Valve

Brand: Bifold - by Rotork
Request Information
Superior performance throughout the full operational range.
Features
  • 316L stainless steel Arctic service options to -50°C (-58°F) Subsea availability
Superior performance throughout the full operational range.
Features
  • 316L stainless steel Arctic service options to -50°C (-58°F) Subsea availability
Close
Close

Specifications

Brand

BSP Connection

  • 1” BSPP Female
  • 1/2” BSPP Female
  • 1/4” BSPP Female
  • 3/4” BSPP Female
  • 3/8” BSPP Female

Enclosure, Body Material

  • 316L Stainless Steel

Flow Capacity

  • 0.9 Cv - 1/4” Port
  • 1.7 Cv - 3/8” Port
  • 1.9 Cv - 1/2” Port
  • 6.5 Cv - 3/4” Port
  • 8.2 Cv - 1” Port

Materials of Construction

  • Fasteners: Metric A4 18/10 316 Stainless Steel

Media

  • Air
  • Sweet & Sour Gas

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1/4” NPT Female
  • 3/4” NPT Female
  • 3/8” NPT Female

Operating Pressure

  • psi: 0 to 174 (kPa: 0 to 1,200, bar: 0 to 12) Standard
  • psi: 5003.8 (kPa: 34500, bar: 345) - Max.

Seat / Seal Material

  • Seat: Alternative Elastomers
  • Seat: Viton (Standard)

Temperature Range

  • -20° to 180° C (-4° to 356° F) - Standard Service
  • -50° to 40° C (-58° to 104° F) - Arctic Service
