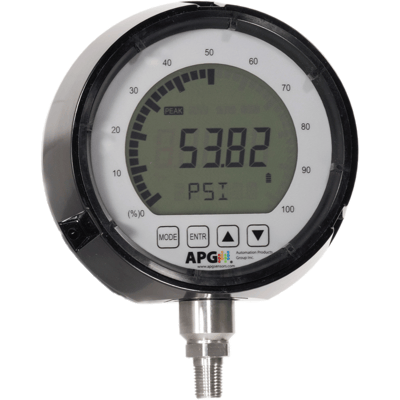

PG10 Digital Pressure Gauge

Brand: Automation Products Group - APG
Request Information
The PG10 Digital Pressure Gauge gives you true at-a-glance readability with the large 5-digit display and 270º radial bar graph. Built-in datalogging headlines a long list of standard funtions.
Features
  • Large, full 5-digit display with 0.68 in. characters
  • Available ranges from vacuum up to 10,000 psi
  • Tare, Peak Hold, Max/Min, and data-logging functions standard
  • ±0.25% accuracy of full scale
  • User selectable units of measure (psi, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm2, lbf)
  • Available RS-485/Modbus Output



The PG10 Digital Pressure Gauge gives you true at-a-glance readability with the large 5-digit display and 270º radial bar graph. Built-in datalogging headlines a long list of standard funtions.
Features
  • Large, full 5-digit display with 0.68 in. characters
  • Available ranges from vacuum up to 10,000 psi
  • Tare, Peak Hold, Max/Min, and data-logging functions standard
  • ±0.25% accuracy of full scale
  • User selectable units of measure (psi, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm2, lbf)
  • Available RS-485/Modbus Output



Close
Close

Specifications

Brand

Accuracy

  • ± 0.1 % of Span
  • ± 0.25 % of Span

Approvals & Certifications

  • CE

BSP Connection

  • 1/4” BSP Male

Compensated Temperature

  • -7° to 54° C (20° to 130° F)

Display

  • 5-Digit LCD

Enclosure, Body Material

  • Weather-Resistant Injected Molded Phenolic Plastic

Environmental Protection

  • IP65

NACE & NIST

  • NIST Certification (Select Ranges)

NPT Connection

  • 1/4” NPT Male
  • 1/8” NPT Female

Mounting

  • Bottom Mounting
  • Rear Mounting
  • Rear Mounting with Panel Bracket

Operating Temperature

  • -18° to 71° C (0° to 160° F)

Output

  • 0 to 2 Vdc
  • 0-5 Vdc
  • 4-20 mA

Pressure Range

  • bar: 0 to 68.9
  • kPa: 0 to 6,894
  • psi: 0 to 10,000

Pressure Type

  • Gauge

Relay Operation

  • Solid State Relays

SAE Connection

  • 7/16”-20 SAE Male

Size

  • Face: 5.45”

Storage Temperature

  • -40° to 71° C (-40° to 160° F)

Supply Voltage

  • 3.6 V Lithium
  • 9-28 Vdc
  • 9 V Lithium Battery

Switch Type

  • SPDT

Wetted Materials

  • 316L Stainless Steel
