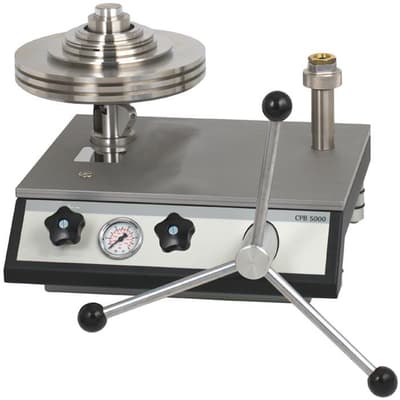

Pressure Balance - CPB5000

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
Due to its integrated pressure generation and the purely mechanical measuring principle, the model CPB5000 is ideal for on-site use for maintenance and service.
Features
  • Total measurement uncertainty to 0.008 % of reading.
  • Factory calibration included as standard, traceable to national standards; with DKD/DAkkS calibration possible as an option.
  • High long-term stability with recommended recalibration interval every five years.
  • Masses manufactured from stainless steel and Aluminum, can be adjusted to local gravity.
  • Quick and safe replacement of the piston-cylinder system for measuring range changes via patented ConTect quickrelease system as an option.
Due to its integrated pressure generation and the purely mechanical measuring principle, the model CPB5000 is ideal for on-site use for maintenance and service.
Features
  • Total measurement uncertainty to 0.008 % of reading.
  • Factory calibration included as standard, traceable to national standards; with DKD/DAkkS calibration possible as an option.
  • High long-term stability with recommended recalibration interval every five years.
  • Masses manufactured from stainless steel and Aluminum, can be adjusted to local gravity.
  • Quick and safe replacement of the piston-cylinder system for measuring range changes via patented ConTect quickrelease system as an option.
Close

Specifications

Brand

Uncertainty

  • 0.008 % of Reading

Measuring Range

  • -1 to 1,000 bar (-14 to 14,500 psi)

Material of Construction

  • Piston & Cylinder: Tungsten carbide
  • Mass set: 1.4305 Stainless Steel and Aluminium, Non-magnetic
  • Piping in base: Polyeurethane, 1.4571 Stainless Steel

Certifications & Approvals

  • CE
  • Uzstandard
  • MTSCHS
Close

Applications

  • Primary standard for defining the pressure scale in a pneumatic range of up to 100 bar (1,500 psi) or with a gas to oil separator up to 400 bar (5,000 psi)
  • Reference instrument for factory and calibration laboratories for the testing, adjustment and calibration of pressure measuring instruments
  • Complete, stand-alone system, also suitable for on-site use
