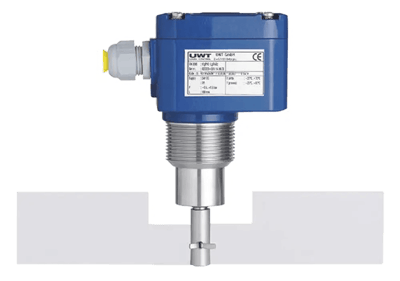

Rotonivo® - RN 3005 Rotary Paddle Level Switch

Brand: UWT GmbH
Request Information
Application Area

The rotating paddle detector Rotonivo® RN 3005 is used as a full detector in tank and container loading bellows for all bulk materials.

Buildup or a dust-intensive process environment does not in any way affect the accuracy of the measurement results of the level indicator.

Due to its compact design, it can be installed in a space-saving manner in the loading sets.
Features
  • Simple, reliable and maintenance-free limit switch in loading bellows
  • Works in almost all bulk materials
  • Plug and play level limit switch without calibration
Application Area

The rotating paddle detector Rotonivo® RN 3005 is used as a full detector in tank and container loading bellows for all bulk materials.

Buildup or a dust-intensive process environment does not in any way affect the accuracy of the measurement results of the level indicator.

Due to its compact design, it can be installed in a space-saving manner in the loading sets.
Features
  • Simple, reliable and maintenance-free limit switch in loading bellows
  • Works in almost all bulk materials
  • Plug and play level limit switch without calibration
Close

Specifications

Brand

Measurement Pprinciple

  • Rotary Paddle

Measuring Task

  • Point Level Measurement

Version

  • Extra Short Version with VT-Paddle

Medium

  • Solids

Mounting Position

  • In Loading Bellow

Ambient Temperature

  • -40°C … +60°C (-40°F … +140°F)

Process Temperature

  • -40°C ... +80°C (-40°F … +176°F)

Process Pressure

  • -0,9 bar ... +0,8 bar (-13.1 psi … +11.6 psi)

Minimum Sensitivity

  • > 15 g/l (> 0.9 lbs/ft³)

Housing Type

  • Standard

Housing Material

  • Aluminum
  • Plastics (PA6)

Housing Protection Rating

  • IP66

Threaded Connection

  • ≥ G 1½"
  • ≥ NPT 1½"

Wetted Materials

  • Aluminum
  • Stainless Steel 1.4305 (303)
  • NBR

Minimum Immersion Length

  • 90 mm (3.5")

Maximum Immersion Length

  • 90 mm (3.5")

Power Supply

  • 24 VAC
  • 48 VAC
  • 115 VAC
  • 230 VAC
  • 24 VDC
  • Universal Voltage (24 VDC / 22...230 VAC)

Signal Output

  • Microswitch
  • Relay SPDT
  • Transistor PNP

Approvals

  • CE, ATEX, IEC-Ex, TR-CU

Explosion Protection

  • Dust Ignition-proof (Ex t)

User Interface

  • Jumper
  • Potentiometer

Optical Indicator

  • LED

Adjustment Possibility

  • Adjutable Sensitivity
  • Adjustable Output Delay
  • Switchable Logic (Fail Safe High - Fail Safe Low)
  • Fail Safe Alarm (Rotation Control)
