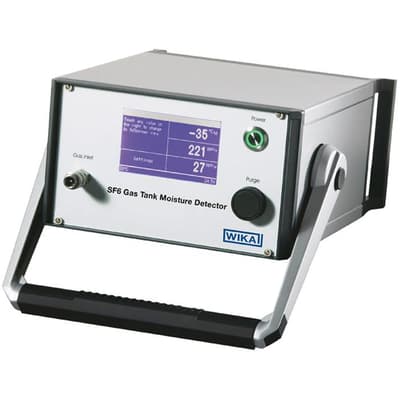

Analysis Instrument for Determining the Gas Humidity in SF Gas - GA20
Description
The analysis instrument model GA20 is used for determining the humidity content in SF6 gas. Due to the procedures of filling and servicing equipment, a residual humidity in SF6 gas is inevitable.
However, humidity must be kept as low as possible for guaranteeing a faultless long-term usage.
Features- Fast test results, measuring time approx. 5 minutes.
- Compact and low weight.
- Maintenance-free.
- Operation via touchscreen.
- Long battery life.
Specifications
Specifications
Measuring Principle
- Polymer-based capacitive humidity Sensor
Measuring Range
- -60° ... 20° C dew point
Accuracy
- ± 4° C dew point at < -40° C dew point
- ± 2° C dew point at -40 ...+20° C dew point
Resolution
- 1° Ctd
Units
- Pressure and Temperature Compensated
- Measured at atmospheric Pressure
- ° Ctd, ppmv, ppmw
Flow Rate
- 20 litres/hour
Gas Consumption
- Approximately 1.7 litres per measurement (Under atmospheric Pressure)
Inlet Pressure
- With automatic flow Control
- 0.5 ... 35 bar (Gaseous)
Control Panels
- The ‘Purge’ Button conducts the Contents of the 4-metre-long measuring Tube directly to the outlet. This should be carried out before each measurement.
- Input via touchscreen
Display
- Touchscreen (240 x 128 Pixel)
Voltage Supply
- Charger: AC 100 ... 265 V, 50/60 Hz
- Lithium-ion accumulator for approximately 24 h Operating time
Temperatures
- Operation: 0° to +50° C
- Storage: -10° to +60° C
Dimensions
- W x H x D: 280 x 140 x 300 mm
Weight
- Approximately 6 kg
Calibration
- Recommended every 2 Years
