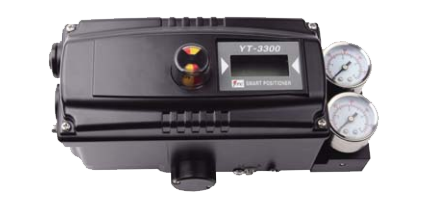

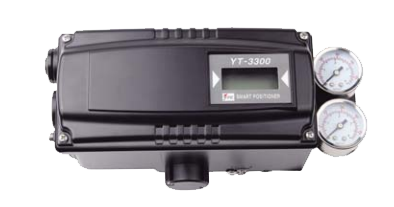

YT-3300 Smart Positioner

Brand: Rotork YTC
Request Information
The YT-3300 Smart Valve Positioner accurately controls valve stroke according to an input signal of 4–20 mA, which is being input from the controller.

In addition, the built-in microprocessing operator optimizes the positioner's performance and provides unique functions such as auto-calibration, PID control, alarm, and Hart protocol.
Features
  • LCD display
  • Limit switches
  • PID control
  • Feedback signal
  • 4 buttons for local control
  • Auto calibration
  • HART communication
  • Auto/Manual switch
The YT-3300 Smart Valve Positioner accurately controls valve stroke according to an input signal of 4–20 mA, which is being input from the controller.

In addition, the built-in microprocessing operator optimizes the positioner's performance and provides unique functions such as auto-calibration, PID control, alarm, and Hart protocol.
Features
  • LCD display
  • Limit switches
  • PID control
  • Feedback signal
  • 4 buttons for local control
  • Auto calibration
  • HART communication
  • Auto/Manual switch
Close
Close

Specifications

Brand

Ambient Temperature Range

  • -40° to 85° C (-40° to 185° F)

Approvals & Certifications

  • ATEX
  • IEC
  • IEC Ex
  • KC
  • NEPSI

Conduit Connection

  • PF 1/2 (G 1/2”)

Enclosure, Body Material

  • Die Cast Aluminum

Environmental Protection

  • IP66

Flow Capacity

  • 70 LPM

Hysteresis

  • ± 0.05% of Span

Independent Linearity

  • ± 0.5% of Full Scale

Input Signal

  • 4-20 mA DC

Repeatability

  • ± 0.3% of Full Scale

Supply Pressure

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • psig: 20.3 to 101.5
