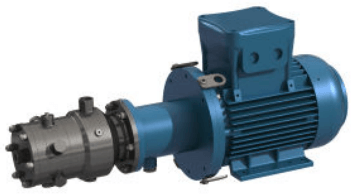

X Oil Pump

Brand: Bifold - by Rotork
The high pressure Type X hydraulic pump is available with either three or six axial pistons actuated by a single rotating swash plate.

The six piston version can also be supplied with duplex deliveries which may be used for simultaneous high and low pressure applications when used in conjunction with an automatic unloading valve.
Features
  • Rotating swash plate design
  • Pressures up to psi: 15,080 (kPa: 104,000, bar: 1,040)
  • Flows up to 41.27 l/m (10.894 USg/m)
  • 316 stainless and carbon steel case options
  • Flow/pressure combinations within 15 kw range
  • Duplex operation option available
The high pressure Type X hydraulic pump is available with either three or six axial pistons actuated by a single rotating swash plate.

The six piston version can also be supplied with duplex deliveries which may be used for simultaneous high and low pressure applications when used in conjunction with an automatic unloading valve.
Features
  • Rotating swash plate design
  • Pressures up to psi: 15,080 (kPa: 104,000, bar: 1,040)
  • Flows up to 41.27 l/m (10.894 USg/m)
  • 316 stainless and carbon steel case options
  • Flow/pressure combinations within 15 kw range
  • Duplex operation option available

Specifications

BSP Inlet

  • 3/4” BSP Female

BSP Outlet

  • 1/2” BSP Female
  • 3/8” BSP Female

Cone & Thread Connection

  • 3/8” Female Medium Pressure

Enclosure, Body Material

  • 316 Stainless Steel
  • Carbon Steel

NPT Inlet

  • 3/4” NPT Female

NPT Outlet

  • 3/8” NPT Female
