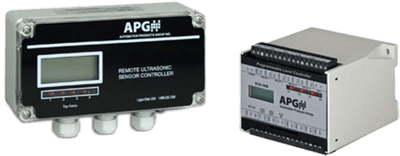

DCR Ultrasonic Controller

Brand: Automation Products Group - APG
Request Information
The DCR controllers and DST series ultrasonic sensors work together to allow simple level monitoring and control without the need of a more advanced system. This system has reliably performed for fifteen years and still meets application needs today. With several sensors to choose from, and a variety of mounts, ranges, and outputs, there are plenty of options for your application needs.
Features

  • Built in keypad for programming
  • Analog and trip points
  • Controller and sensor can be separated up to 2,000 feet (650 meters)
  • Microprocessor with E2 memory retains settigs on power loss



The DCR controllers and DST series ultrasonic sensors work together to allow simple level monitoring and control without the need of a more advanced system. This system has reliably performed for fifteen years and still meets application needs today. With several sensors to choose from, and a variety of mounts, ranges, and outputs, there are plenty of options for your application needs.
Features

  • Built in keypad for programming
  • Analog and trip points
  • Controller and sensor can be separated up to 2,000 feet (650 meters)
  • Microprocessor with E2 memory retains settigs on power loss



Close
Close

Specifications

Brand

Display

  • 4-Digit LCD
  • 8-Digit LCD

Electrical Connectors

  • Coaxial Cable
  • Terminal Strip - Internal

Enclosure, Body Material

  • Polycarbonate

Environmental Protection

  • IP10
  • IP65
  • NEMA 1, 4X / IP10, 65
  • NEMA 4X

Input

  • 4 Dry Contacts
  • 4-20 mA
  • DST Sensor

Operating Temperature - Electronics

  • -30° to 60° C (-22° to 140° F)

Options

  • Programmable Keypad

Output

  • 4-20 mA

Relay Operation

  • 4 Relays

Supply Voltage

  • 24 Vdc
