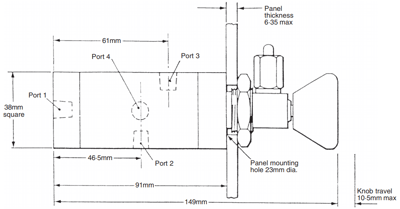

1200/1201/1205/1206 Lockout Relay Valve

Brand: Bifold - by Rotork
These lockout relays are pilot-operated, three port, two position valves with a manual reset knob, designed for panel mounting.
Features
  • Working Pressure: 10.3 bar (150 psi)
  • Pilot Pressure – Minimum: 2.1 bar (30 psi)
  • Pilot pressure – Maximum: 10.3 bar (150 psi)
  • Operating Media – Types 1200/1205: Air, natural and sour gases
  • Operating Media – Types 1201/1206: Mineral oil, water, water-glycol mixtures
  • Connections: 1/8" NPT all ports
  • Working Temperature – Standard: –20° to 160°C (-4° to 320°F)
  • Manual Close, Maximum Pilot Pressures – Gaseous Media: 10.3 bar (150 psi)
  • Manual Close, Maximum Pilot Pressures – Liquid Media: 4.8 bar (70 psi)
These lockout relays are pilot-operated, three port, two position valves with a manual reset knob, designed for panel mounting.
Features
  • Working Pressure: 10.3 bar (150 psi)
  • Pilot Pressure – Minimum: 2.1 bar (30 psi)
  • Pilot pressure – Maximum: 10.3 bar (150 psi)
  • Operating Media – Types 1200/1205: Air, natural and sour gases
  • Operating Media – Types 1201/1206: Mineral oil, water, water-glycol mixtures
  • Connections: 1/8" NPT all ports
  • Working Temperature – Standard: –20° to 160°C (-4° to 320°F)
  • Manual Close, Maximum Pilot Pressures – Gaseous Media: 10.3 bar (150 psi)
  • Manual Close, Maximum Pilot Pressures – Liquid Media: 4.8 bar (70 psi)

Specifications

Approvals & Certifications

  • ATEX
  • CE
  • UKAS

NACE & NIST

  • NACE MR-0175

NPT Connection

  • 1/8” NPT Female

Pressure Range

  • bar: 0 to 10.3
  • kPa: 0 to 1,030
  • psi: 0 to 150
