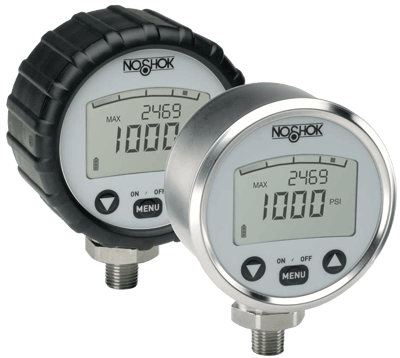

1000 Series Digital Pressure Gauge

Brand: Noshok, Inc
Features
  • Rugged, Electronic Gauge
  • Compound and Standard Ranges through 0 to 10,000 psig (68,950 kPa, 689.5 bar)
  • 3.31" Gauge Size
  • Stainless Steel Case
  • Stainless Steel, Aluminum, NBR and Ceramic Wetted Parts
  • CE Compliant to Suppress RFI, EMI and ESD
Optional Enhanced Software Features
  • Tare Function
  • Password Protection
  • Minimum/Maximum Memory
  • Internal Lighting
  • 300° Rotatable Base
Features
  • Rugged, Electronic Gauge
  • Compound and Standard Ranges through 0 to 10,000 psig (68,950 kPa, 689.5 bar)
  • 3.31" Gauge Size
  • Stainless Steel Case
  • Stainless Steel, Aluminum, NBR and Ceramic Wetted Parts
  • CE Compliant to Suppress RFI, EMI and ESD
Optional Enhanced Software Features
  • Tare Function
  • Password Protection
  • Minimum/Maximum Memory
  • Internal Lighting
  • 300° Rotatable Base

Specifications

Accuracy

  • ± 0.25 % of Full Scale BFSL
  • ± 0.5 % Terminal Point

Ambient Temperature Range

  • -10° to 60° C (14° to 140° F)

Applications

  • Hydraulics & Pneumatics
  • Laboratory & Test Equipment
  • Leak Detection
  • Power Generation
  • Water Management

Approvals & Certifications

  • CE Compliant to Suppress RFI, EMI & ESD

Bezel Material

  • Stainless Steel Triangular

Compensated Temperature

  • 0° to 60° C (32° to 140° F)

Connection Material

  • 316 Stainless Steel

Display

  • 4-Digits up to 9999 with bar Graph
  • Liquid Crystal Display with 0.43” Digits

Electromagnetic Rating

  • ESD Protection
  • RFI/EMI

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP65

NPT Connection

  • 1/4” NPT Male

Options

  • Enhanced Software
  • Gauge Carrying Case
  • Peak Memory - Standard
  • Rubber Case Protector
  • Threaded Orifice

Power Requirement

  • 2 x 1.5 V AA Battery
  • 4,000 Hours (AA 2000 mAh)

Pressure Range

  • bar: 0 to 689.5
  • Inches Hg: -30 to 0
  • kPa: 0 to 68,950
  • psig: 0 to 10,000

Pressure Type

  • Compound (Vacuum & Gauge Pressure)

Process Temperature

  • -30° to 85° C (-22° to 185° F)

Proof Pressure

  • 2 times Full Scale Range, Max.

Response Time

  • 200 milliseconds

Size

  • Gauge: 3.31”

Span & Zero Effect

  • ± 0.15 % Per 10K

Span Effect

  • ± 0.005 % of Full Scale/°F

Storage Temperature

  • -20° to 70° C (-4° to 158° F)

Wetted Materials

  • ≤ 750 psig, ≥ 1000 psig Stainless Steel, Thin-film (Measuring Element)
  • Aluminum (Measuring Element)
  • Ceramic (Measuring Element)
  • NBR (Measuring Element)

Applications

  • Hydraulics & Pneumatics
  • Laboratory & Test Equipment
  • Leak Detection
  • Power Generation
  • Water Management
