1074 & 1174 Shutdown Valve

Brand: Bifold - by Rotork
Master shutdown valve Types 1074/1174 are pilot-operated, three port, two position poppet valves with a spring-return action.

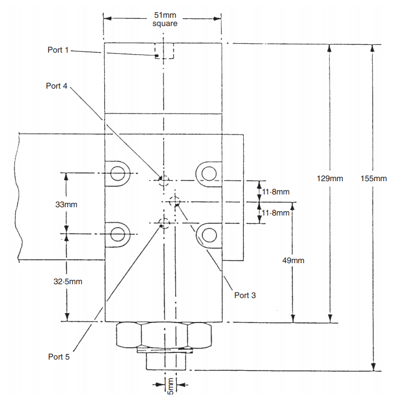

Type 1074 has screwed connections, whereas Type 1174 is manifold mounted.
Features
  • Working Pressure: 690 bar (10,000 psi) max
  • Pilot Pressure: 103 to 345 bar (1,500 to 5,000 psi)
  • Flow Rate, Nominal: 27 litres/min (6 imp galls/min)
  • Operating Media - Valve: Mineral oils, water, water-glycol mixtures
  • Operating Media - Pilot: Air, sour gas or one of the poppet media
  • Working Temperature: -20° to 130°C (-4° to 266°F)
  • Recommended Filtration: 10 micron
Master shutdown valve Types 1074/1174 are pilot-operated, three port, two position poppet valves with a spring-return action.

Type 1074 has screwed connections, whereas Type 1174 is manifold mounted.
Features
  • Working Pressure: 690 bar (10,000 psi) max
  • Pilot Pressure: 103 to 345 bar (1,500 to 5,000 psi)
  • Flow Rate, Nominal: 27 litres/min (6 imp galls/min)
  • Operating Media - Valve: Mineral oils, water, water-glycol mixtures
  • Operating Media - Pilot: Air, sour gas or one of the poppet media
  • Working Temperature: -20° to 130°C (-4° to 266°F)
  • Recommended Filtration: 10 micron

Specifications

Approvals & Certifications

  • ATEX
  • CE
  • UKAS

NACE & NIST

  • NACE MR-0175
