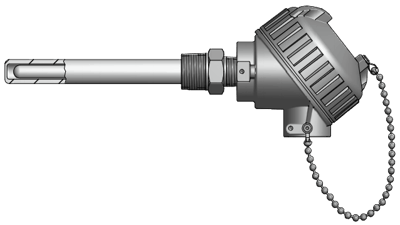

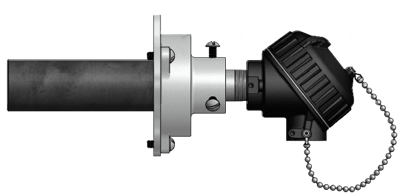

Images are representations only.

Thermocouple Assemblies with Double Protection Tube

Brand: Pyromation
The noble-metal thermocouple assemblies are provided with double protection tubes. Outer protection tube choices of ceramic, metal alloys, or composite materials offer protection from a variety of high temperature process environments.

All assemblies are provided with a ceramic inner tube. The inner tubes are cemented to the outer tube and are not replaceable, except for 18J assemblies.

These assemblies are available with a variety of process mounting fittings and assembly options as listed below.
The noble-metal thermocouple assemblies are provided with double protection tubes. Outer protection tube choices of ceramic, metal alloys, or composite materials offer protection from a variety of high temperature process environments.

All assemblies are provided with a ceramic inner tube. The inner tubes are cemented to the outer tube and are not replaceable, except for 18J assemblies.

These assemblies are available with a variety of process mounting fittings and assembly options as listed below.

Specifications

Tube Material

  • Alumina
  • LT-1
  • RSiC
  • Alloy 601
  • HR-160
  • Mullite
  • Silicon Carbide

Head Material

  • 316L Stainless Steel
  • Cast Iron
  • Aluminum

Tube Length

  • 12” to 36”

Process Connection

  • Support flange
  • Nipple
  • Hex Fitting

Material of Construction

  • Welded Bushing: Steel, 316 Stainless Steel
  • Nipple: 316 Stainless Steel
  • Tag: Stainless
